0E39615

p/n 0E39615

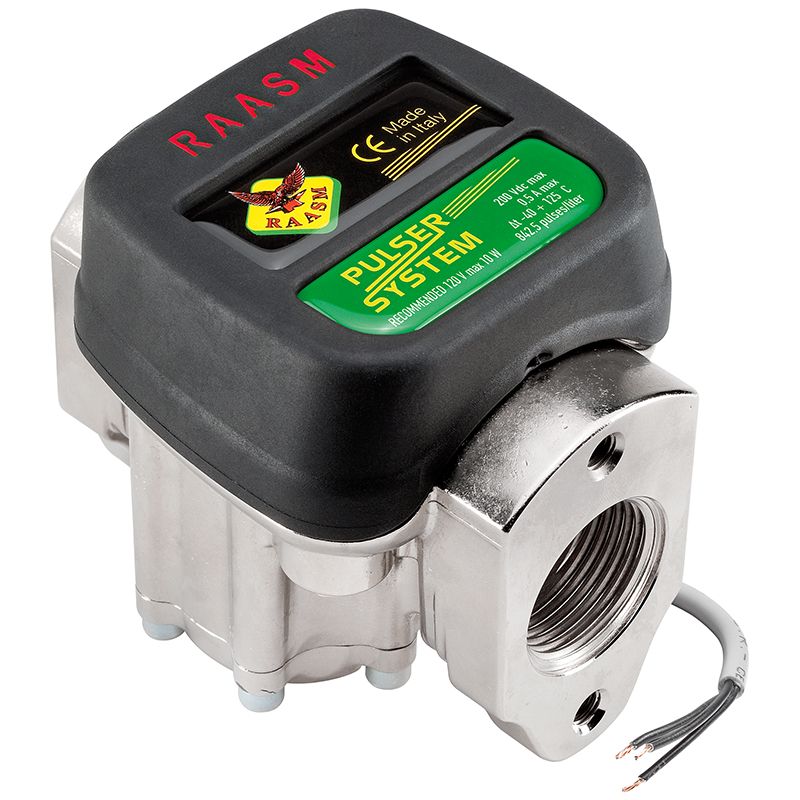

Pulser meter for oil with inlet-outlet G 1" (f)

Download

Product sheet

File PDF - 200 KB

Manual

File - 2.08Mb

Features

Flow rate 100 l/min
Compatible fluids oils and similar products
Body's material aluminum
Gear's material POM
Inlet G 1" (f) + flange
Outlet G 1" (f) + flange
Max working pressure 70 bar
Burst pressure ± 200 bar
Accuracy ± 0,3%
Pulser for litre 282
Max supply voltage 48 V DC max
Max amperage 0,5 A
Max power 10 W
Net weight 1,1 kg
Packing No. 1 - 0,005 m³
Gross weight 1,35 kg
