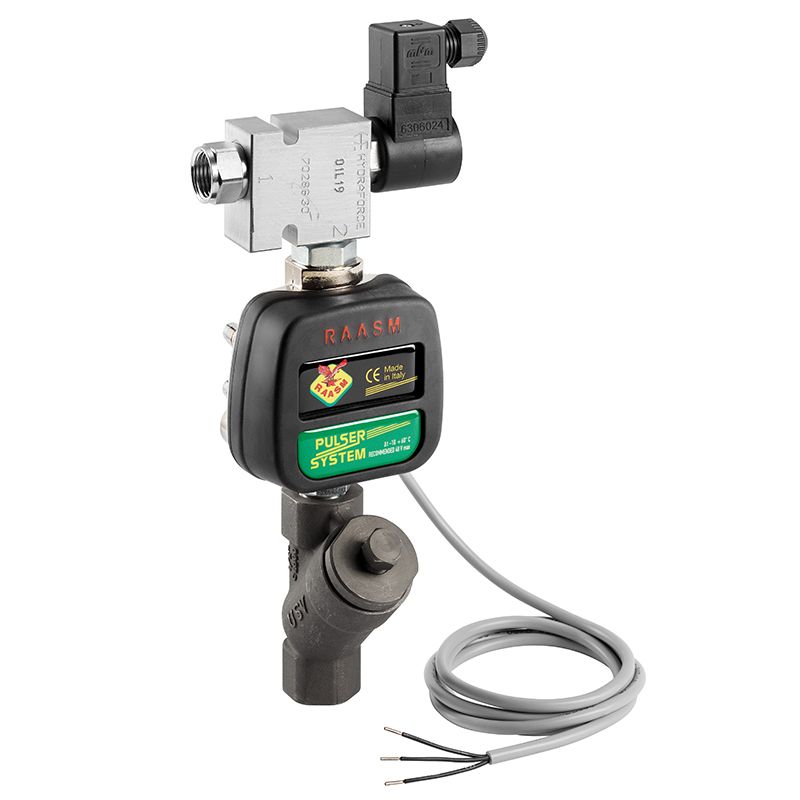

Pulser meter for oil with inlet-outlet G 1/2" (f) and in-line "Y" filter with G 1/2" (f) connections from 800 µm
Flow rate | 35 l/min |
Compatible fluids | oils and similar products |
Body's material | aluminum |
Gear's material | POM |
Inlet | G 1/2" (f) |
Outlet | G 1/2" (f) |
Max working pressure | 70 bar |
Burst pressure | ± 200 bar |
Accuracy | ± 0,3% |
Pulser for litre | 842 |
Max supply voltage | 48 V DC max |
Max amperage | 0,5 A |
Max power | 10 W |
Net weight | 0,485 kg |
Packing | No. 1 - 0,0015 m³ |
Gross weight | 0,85 kg |
