0E1065PF

p/n 0E1065PF

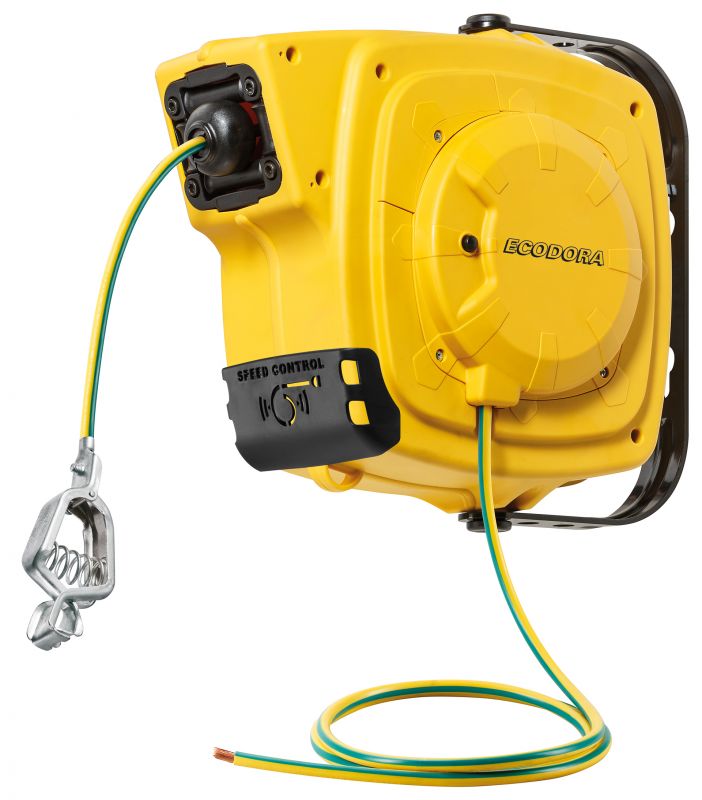

Earthing cable reel s. 280 with 50 A plier. Number of conductors 1, cable type 1 x 6 - H05 V-F, cable lenght 15 + 1 (m). Rewinding clutch as standard

Download

Product sheet

File PDF - 200 KB

Manual

File - 10.19Mb

Features

Information earthing
Protection degree of electrical part IP44
Environment temperature -5÷+40 °C
Number of conductors 1
Cable type 1x6 - H07 V-K
Cable length 15+1 m
Cable inlet 1,2 m
Earthing pliers p/n 0E735112
Current intensity 50 A
Rewinding clutch yes
Packing No. 1 - 0,043 m³
Gross weight 7 ÷ 8,8 kg

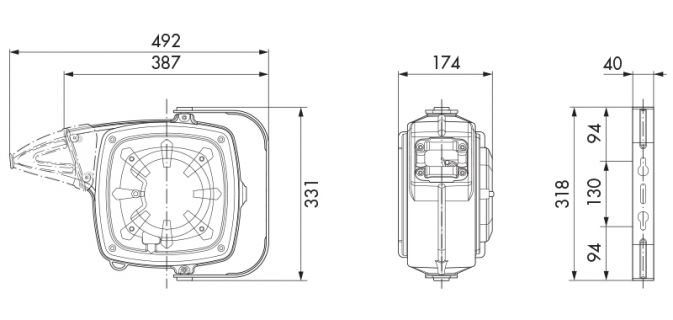

OVERALL DIMENSIONS (mm)

0E1065PF
