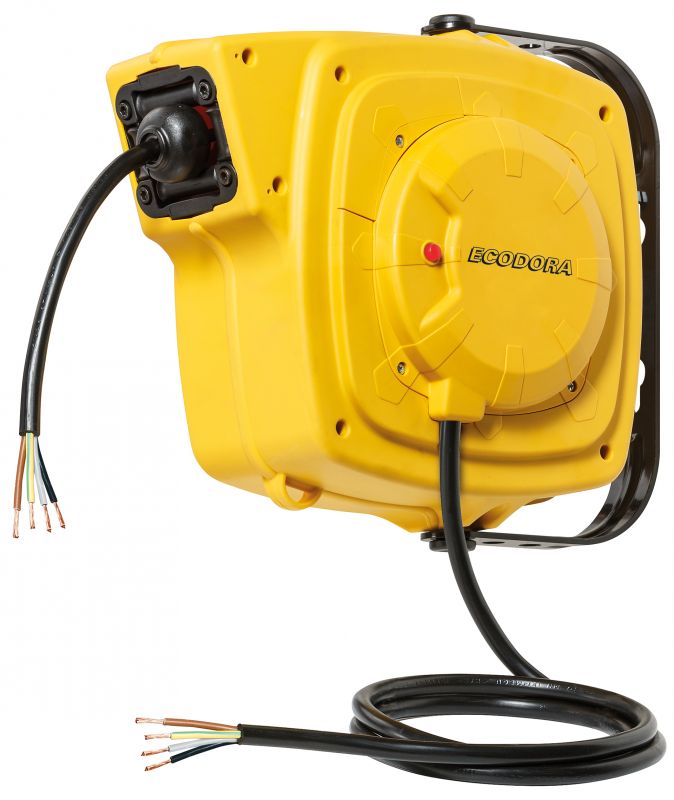

Cable reel s. 280, supply voltage 400 V three phase. Number of conductors 4, cable type 4G x 1 - H05 VV-F, cable length 11 + 1 (m)
| Information | 400 V three phase |
| Protection degree of electrical part | IP44 |
| Environment temperature | -5÷+40 °C |
| Number of conductors | 4 |
| Cable type | 4Gx1 - H05 VV-F |
| Cable length | 11+1 m |
| Cable inlet | 1,2 m |
| Max power use (20 °C) wound | 1,1 kW |
| Max power use (20 °C) unwound | 2,3 kW |
| Thermal protector | yes |
| Rewinding clutch | - |
| Socket | - |
| Plug | - |
| Packing | No. 1 - 0,043 m³ |
| Gross weight | 6,4 ÷ 8,2 kg |
