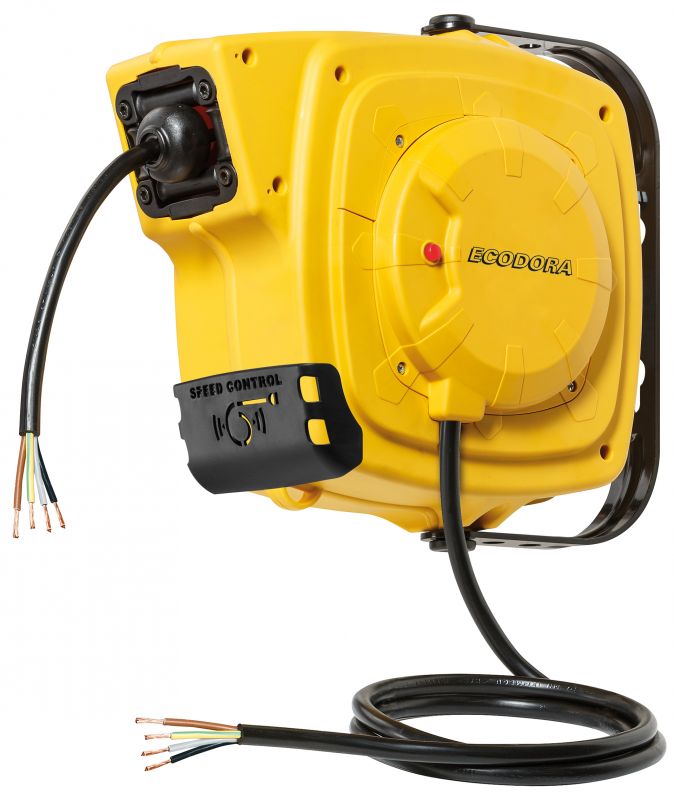

Cable reel s. 280, supply voltage 400 V three phase. Number of conductors 5, cable type 5G x 1,5 - H07 RN-F, cable length 7 + 1 (m). Rewinding clutch as standard
Information | 400 V three phase |
Protection degree of electrical part | IP44 |
Environment temperature | -5÷+40 °C |
Number of conductors | 5 |
Cable type | 5Gx1,5 - H07 RN-F |
Cable length | 7+1 m |
Cable inlet | 1,2 m |
Max power use (20 °C) wound | 1,4 kW |
Max power use (20 °C) unwound | 4 kW |
Thermal protector | yes |
Rewinding clutch | yes |
Socket | - |
Plug | - |
Packing | No. 1 - 0,043 m³ |
Gross weight | 6,4 ÷ 8,2 kg |
