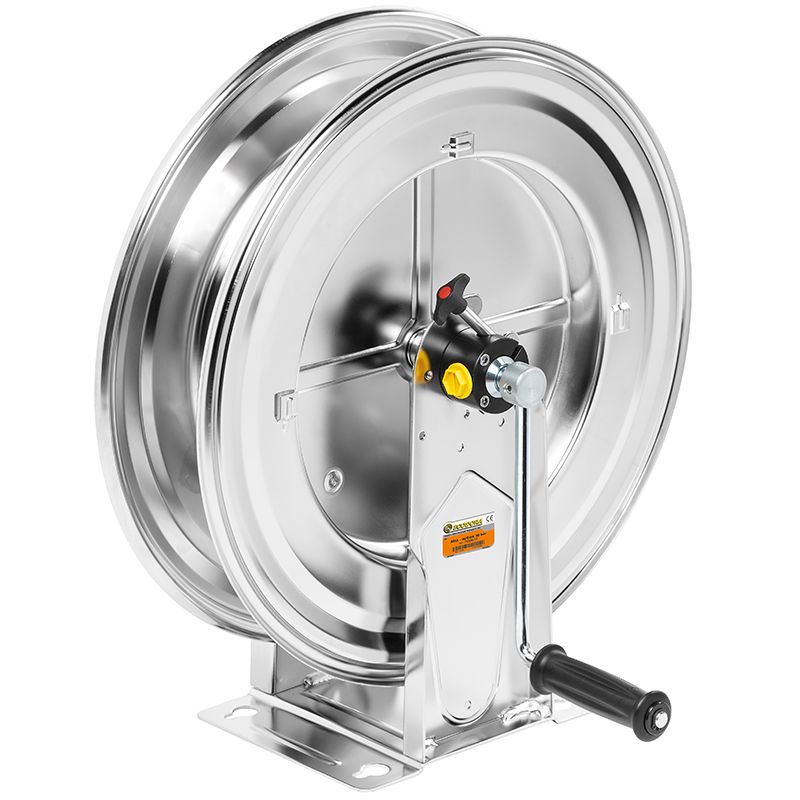

AISI 316 stainless steel manual hose reel s. 530, for hot water, 200 bar, without hose. Inlet G 3/8" (f), outlet G 1/2" (f)
| Pressure | 200 bar |
| Compatible fluids | water max 130 °C, oils and similar products, grease, diesel fuel, AdBlue® |
| Swivel joint | AISI 316 stainless steel |
| Seals | Viton® |
| Characteristic | manual |
| Material | AISI 316 stainless steel |
| Couplings | - |
| Hose | - |
| ø e hose length | - |
| Inlet | G 3/8" (f) |
| Outlet | G 1/2" (f) |
| Reel flow path | AISI 316 stainless steel |

                | Capacity 8 x 12 | Capacity 10 x 14,5 | Capacity 13 x 19 | Capacity 16 x 27 | Capacity 1/4" | Capacity 5/16" | Capacity 3/8" | Capacity 1/2" | Capacity 5/8" | Capacity 3/4" | Capacity 1" | Capacity 1.1/4" | Capacity 1.1/2" | Capacity 2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90 m | 65 m | 35 m | 25 m | 20 m |
