744301/20

p/n 744301/20

Hose reel with electric motorisation 24 V DC in AISI 304 stainless steel s. 700, for water, oil, diesel and industrial fluids, 70 bar, without hose. Drum width 410 mm. Inlet-outlet G 2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 464.17Kb

Manual

File - 32.51Mb

Features

Pressure 70 bar
Compatible fluids water - oil - diesel fuel - industrial fluid
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic electric 24 V DC
Material AISI 304 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 2" (f)
Outlet G 2" (f)
Reel flow path AISI 304 stainless steel

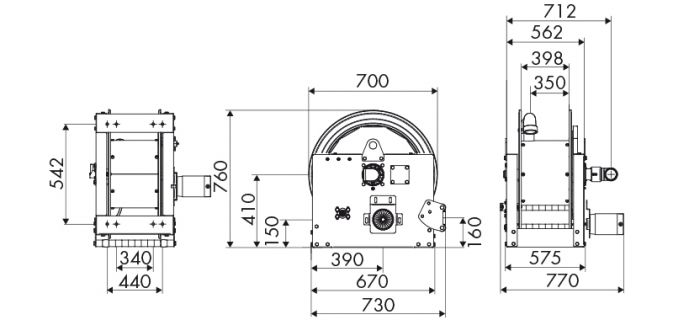

OVERALL DIMENSIONS (mm)

744301/20

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
290 m 180 m 120 m 60 m 35 m 30 m 20 m
Request information
