721702/40

p/n 721702/40

Hose reel with electric motorisation 230 V AC - 50/60 Hz ATEX in painted steel s. 700, for oil and similar, 70 bar, without hose. Drum width 270 mm. Inlet-outlet G 2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 591.52Kb

Manual

File - 32.51Mb

Features

Pressure 70 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals Viton®
Characteristic electric 230 V AC - 50/60 Hz ATEX
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 2" (f)
Outlet G 2" (f)
Reel flow path zinc plated steel

Certifications

721702/40

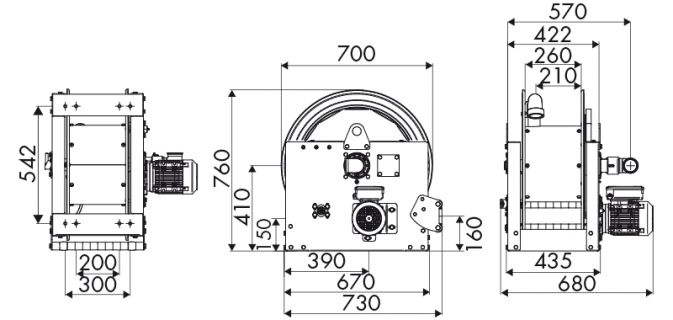

OVERALL DIMENSIONS (mm)

721702/40

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
290 m 180 m 120 m 60 m 35 m 30 m 20 m
