4432/12

p/n 4432/12

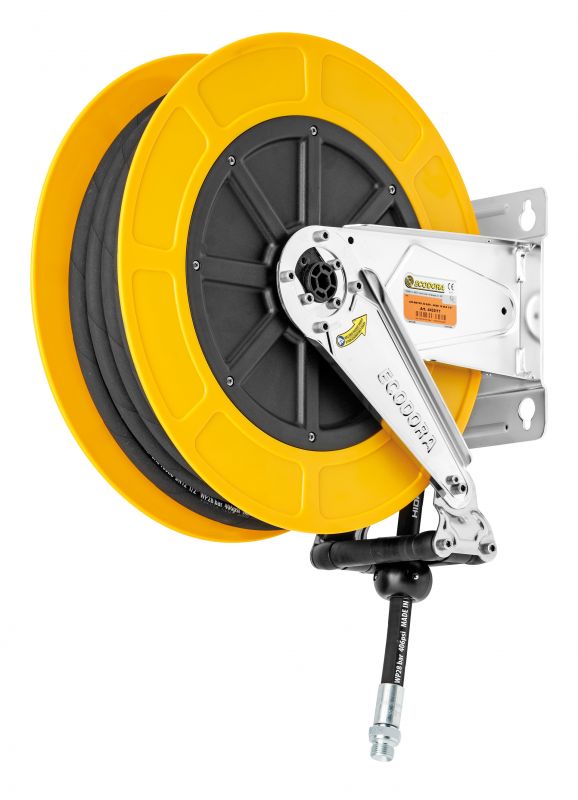

Fixed hose reel in ABS and brackets in AISI 304 stainless steel, s. 430, for air-water, 20 bar, with black rubber hose 12 m, ø 3/8"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 367.37Kb

Manual

File - 13.54Mb

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel with ABS drum
Couplings zinc plated steel
Hose p/n 952/13
ø e hose length ø 3/8" - 12 m
Inlet G 1/2" (f)
Outlet G 3/8" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

4432/12

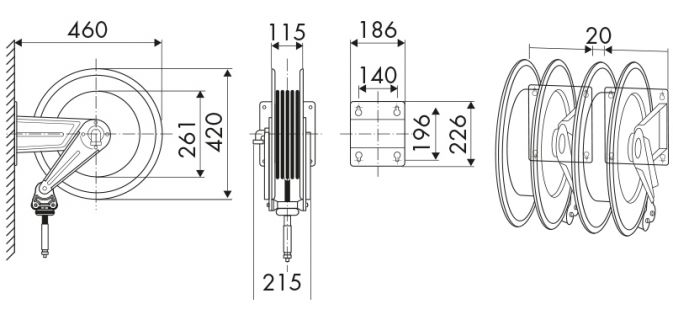

OVERALL DIMENSIONS (mm)

4432/12

This product is also available without hose

Go to the sheet
