4534/12

p/n 4534/12

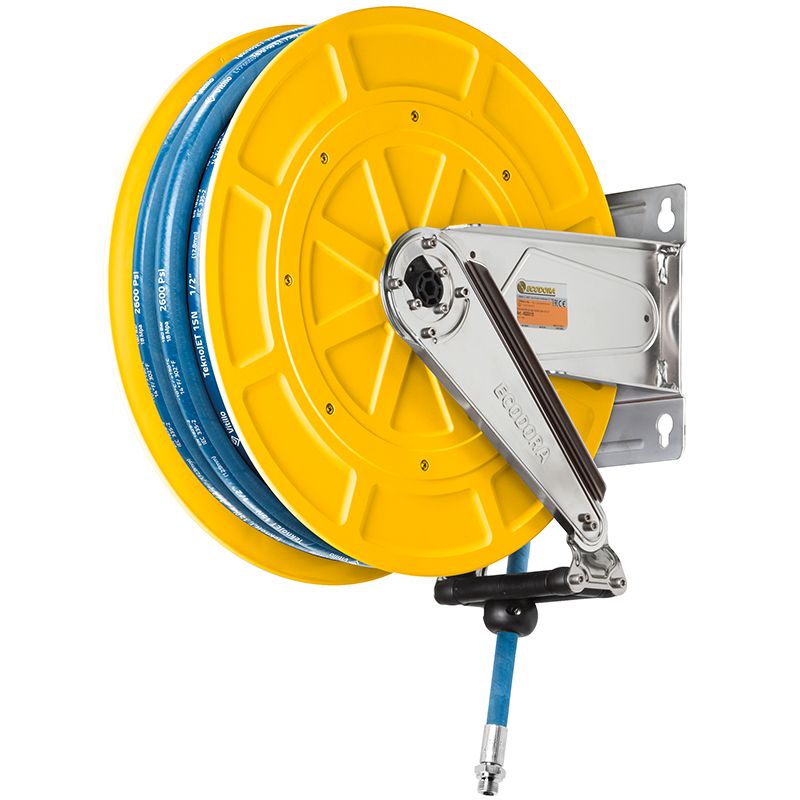

Fixed hose reel in ABS and brackets in AISI 304 stainless steel, s. 530, for hot water, 10 bar, with atoxic hygienic hose 25 m, ø 1/2"

Download

Product sheet

File PDF - 200 KB

Manual

File - 13.54Mb

Features

Pressure 10 bar
Compatible fluids water max 130 °C, oils and similar products
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel with ABS drum
Couplings AISI 316 stainless steel
Hose p/n 861/25
ø e hose length ø 1/2" - 25 m
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel

Certifications

4534/12

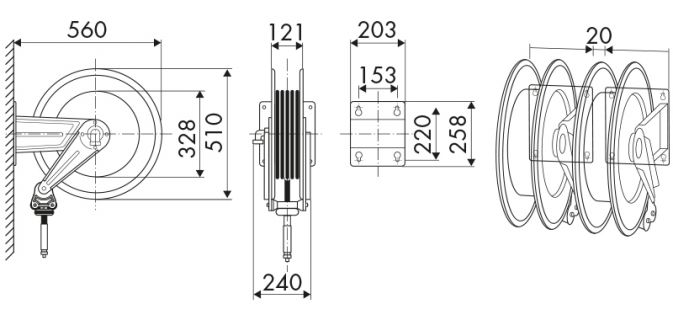

OVERALL DIMENSIONS (mm)

4534/12

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
25 m 25 m 22 m
