4540/412

p/n 4540/412

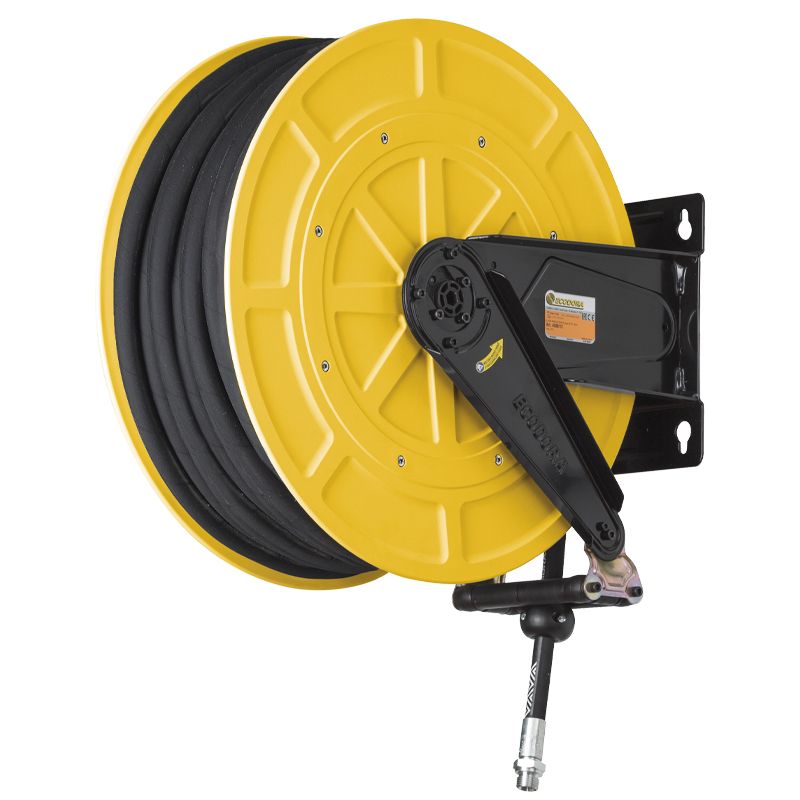

Fixed hose reel in ABS and brackets in painted steel, s. 540, for oil and similar, 100 bar, with black rubber hose 20 m, ø 3/4"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 1.23Mb

Features

Pressure 100 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel with ABS drum
Couplings zinc plated steel
Hose p/n 973/320
ø e hose length ø 3/4" - 20 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path zinc plated steel

Certifications

4540/412

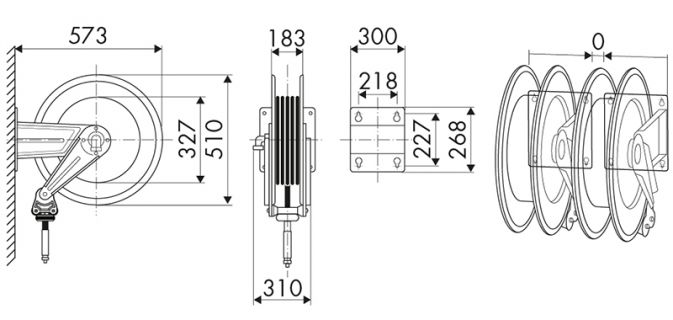

OVERALL DIMENSIONS (mm)

4540/412

This product is also available without hose
