4540/414

p/n 4540/414

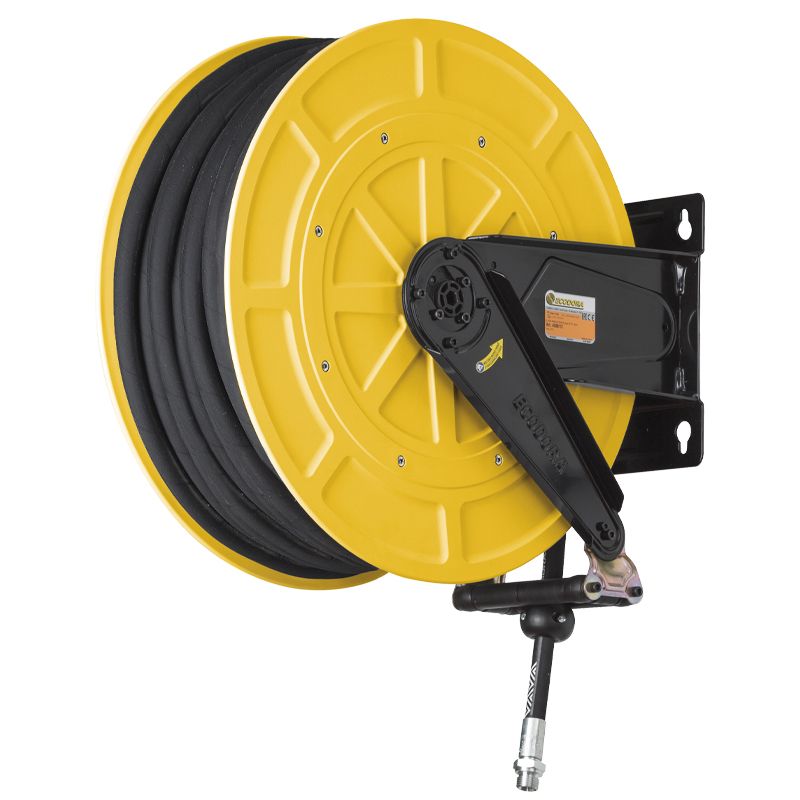

Fixed hose reel in ABS and brackets in painted steel, s. 540, for oil and similar, 50 bar, with black rubber hose 10 m, ø 1"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 1.23Mb

Features

Pressure 50 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel with ABS drum
Couplings zinc plated steel
Hose p/n 983/310
ø e hose length ø 1" - 10 m
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path zinc plated steel

Certifications

4540/414

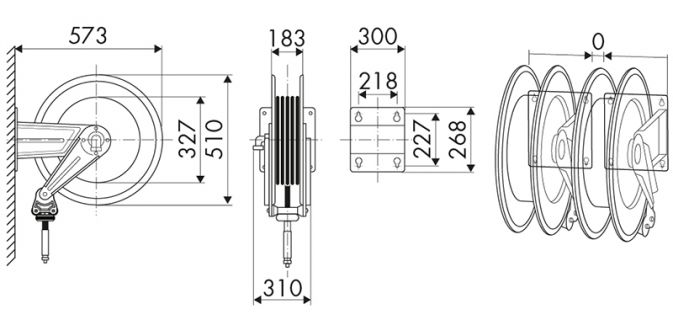

OVERALL DIMENSIONS (mm)

4540/414

This product is also available without hose

Go to the sheet
