4541/21

p/n 4541/21

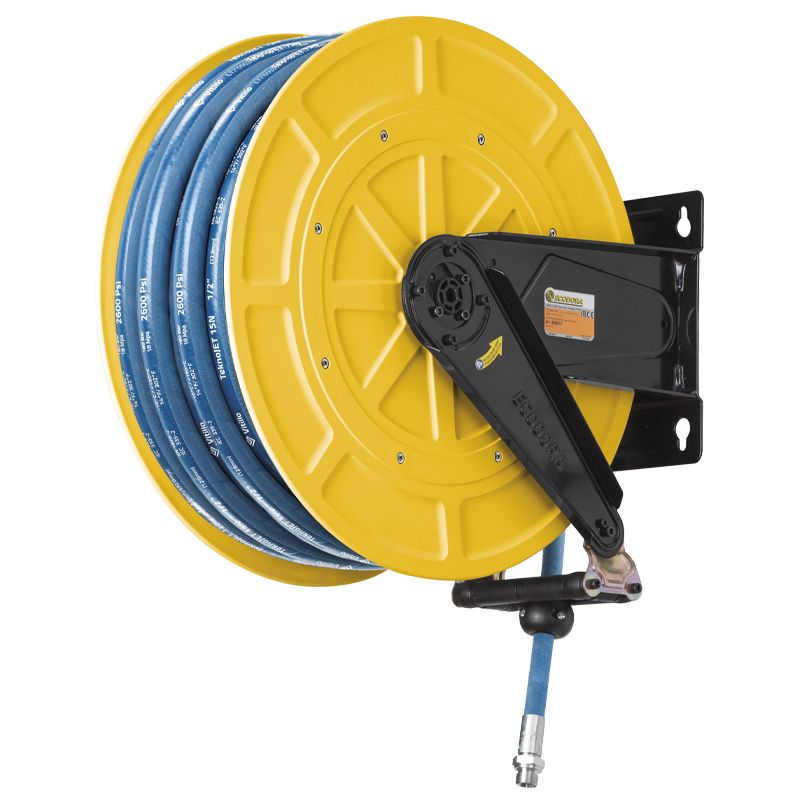

Fixed hose reel in ABS and brackets in painted steel, s. 540, for hot water, 100 bar, with hygienic hose 15 m, ø 3/4"

Download

Product sheet

File PDF - 200 KB

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material painted steel with ABS drum
Couplings zinc plated steel
Hose p/n 974/15
ø e hose length ø 3/4" - 15 m
Inlet G 1" (f)
Outlet G 3/4" (f)
Reel flow path AISI 304 stainless steel

Certifications

4541/21

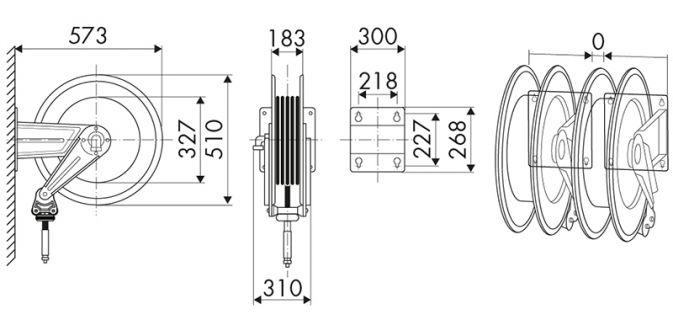

OVERALL DIMENSIONS (mm)

4541/21

This product is also available without hose
