435/32

p/n 435/32

Fixed hose reel in AISI 316 stainless steel, s. 430, for hot water, 200 bar, with black rubber hose 16 m, ø 3/8"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 400.85Kb

Features

Pressure 200 bar
Compatible fluids water max 130 °C
Swivel joint AISI 316 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 316 stainless steel
Couplings AISI 316 stainless steel
Hose -
ø e hose length ø 3/8" - 16 m
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 316 stainless steel

Certifications

435/32

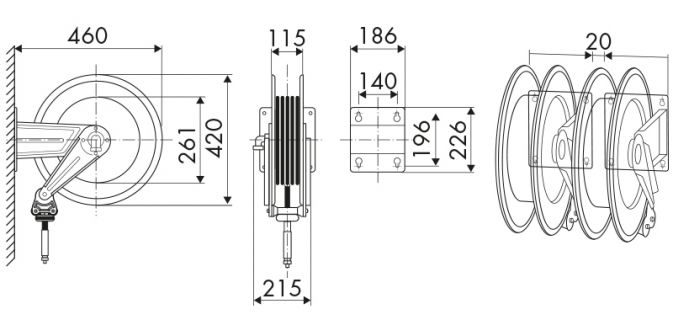

OVERALL DIMENSIONS (mm)

435/32

This product is also available without hose

Go to the sheet
