300/13

p/n 300/13

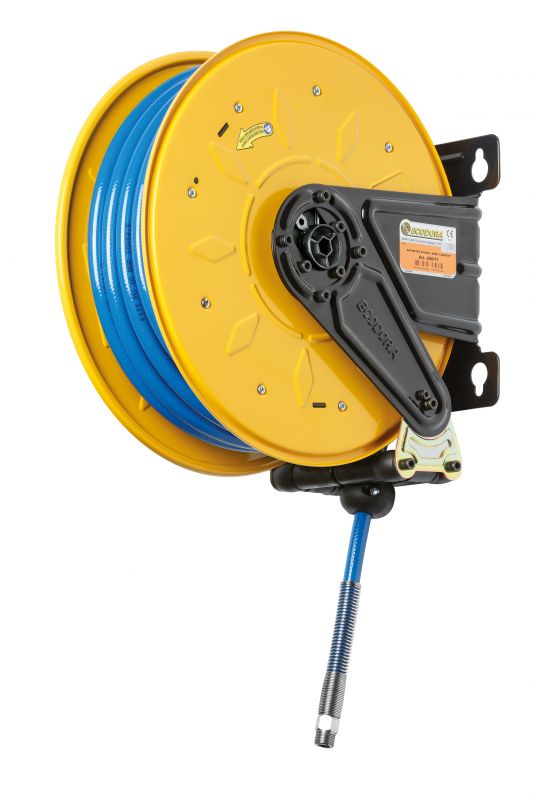

Fixed hose reel s. 300, for air-water, 20 bar, polyurethane hose 18 m ø 8x12 mm

Download

Product sheet

File PDF - 200 KB

Manual

File - 12.82Mb

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 911/18
ø e hose length ø 8x12 mm - 18 m
Inlet G 3/8" (f)
Outlet G 1/4" (m)
Reel flow path brass - zinc plated steel

Certifications

300/13

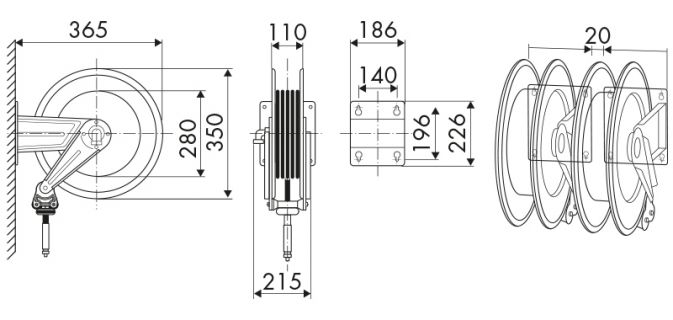

OVERALL DIMENSIONS (mm)

300/13

This product is also available without hose
