428/11

p/n 428/11

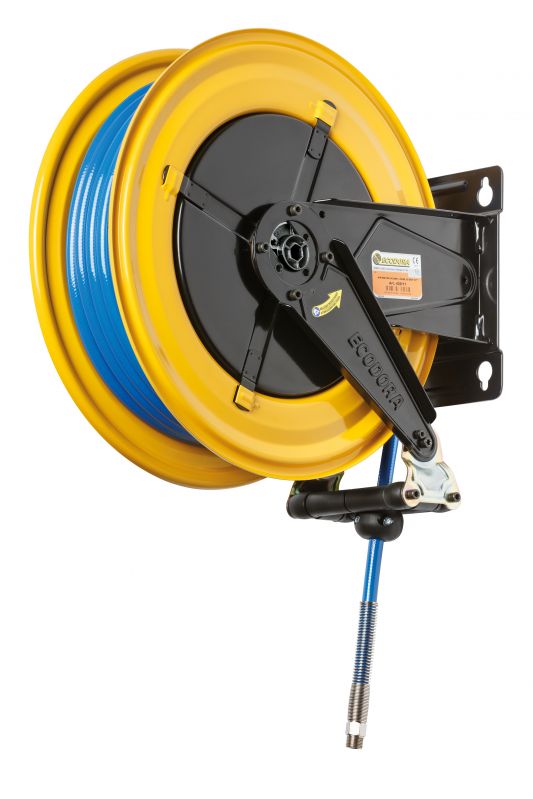

Fixed hose reel s. 430, for air-water 20 bar, with PU hose, 10 m ø 13x19 mm

Download

Product sheet

File PDF - 200 KB

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings brass
Hose p/n 961/11
ø e hose length ø 1/2" - 10 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path brass - zinc plated steel

Certifications

428/11

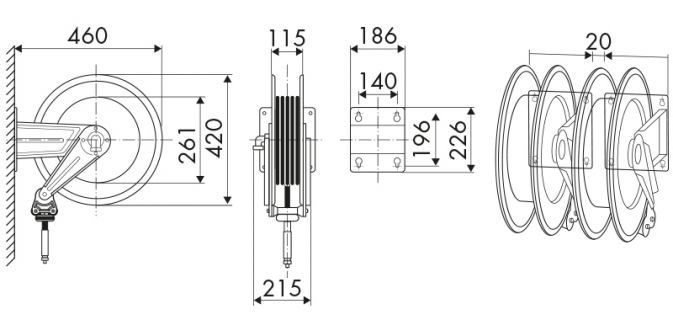

OVERALL DIMENSIONS (mm)

428/11

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
10 m
