530/415

p/n 530/415

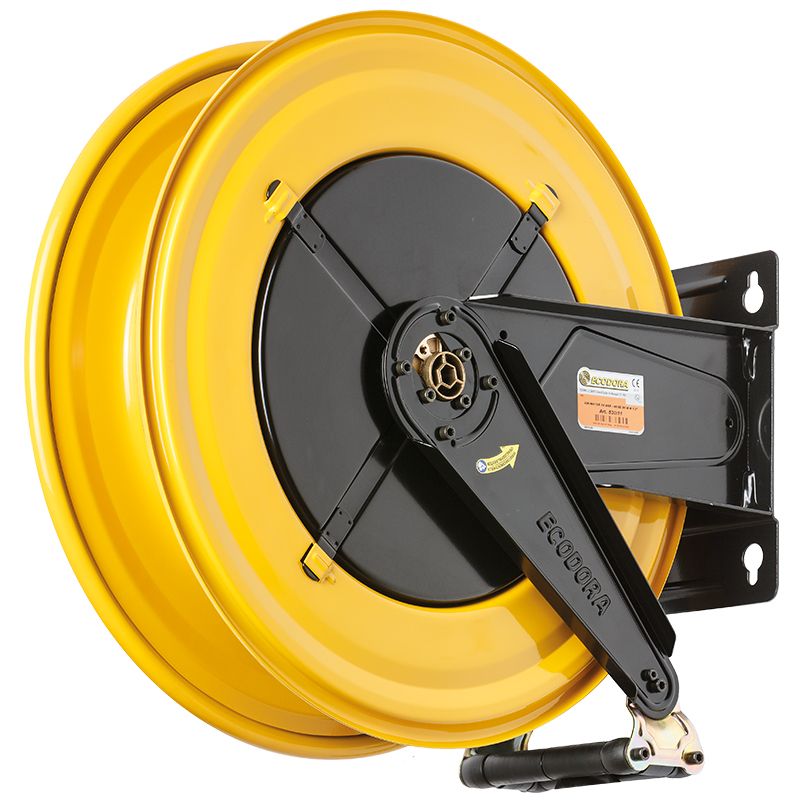

Fixed hose reel s. 530, for oil and similar, 100 bar, without hose (for hose 3/4"). Inlet-outlet G 1" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 213.00Kb

Features

Pressure 100 bar
Compatible fluids water max 130 °C, oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path zinc plated steel

Certifications

530/415

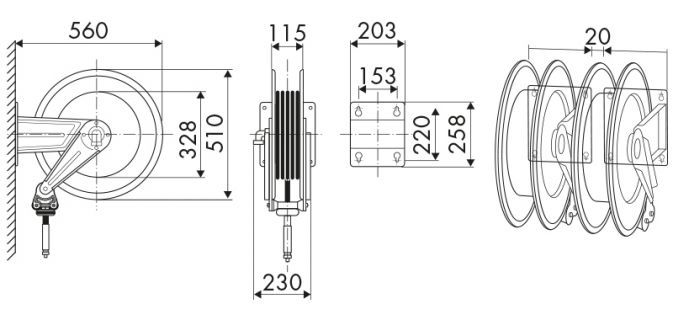

OVERALL DIMENSIONS (mm)

530/415

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
12 m 8 m
