560/13

p/n 560/13

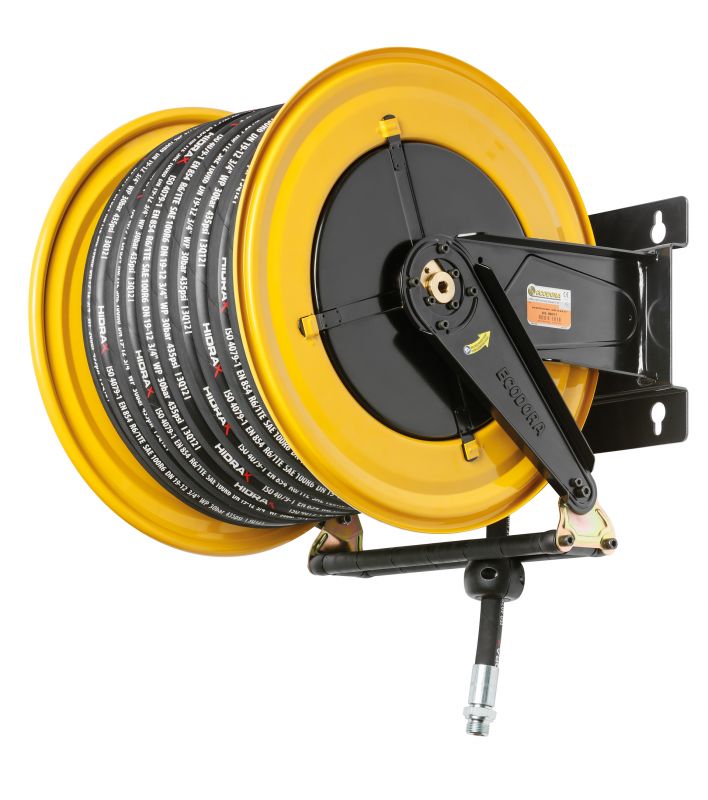

Fixed hose reel s. 560, for air-water, 20 bar, with black rubber hose 40 m, ø 3/4"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 451.46Kb

Manual

File - 12.82Mb

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material painted steel
Couplings zinc plated steel
Hose p/n 972/40
ø e hose length ø 3/4" - 40 m
Inlet G 1" (f)
Outlet G 3/4" (m)
Reel flow path brass - zinc plated steel

Certifications

560/13

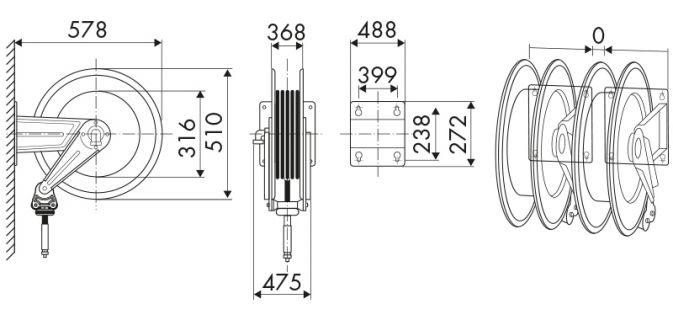

OVERALL DIMENSIONS (mm)

560/13

This product is also available without hose

Go to the sheet
