0E2A1/26775TTI

p/n 0E2A1/26775TTI

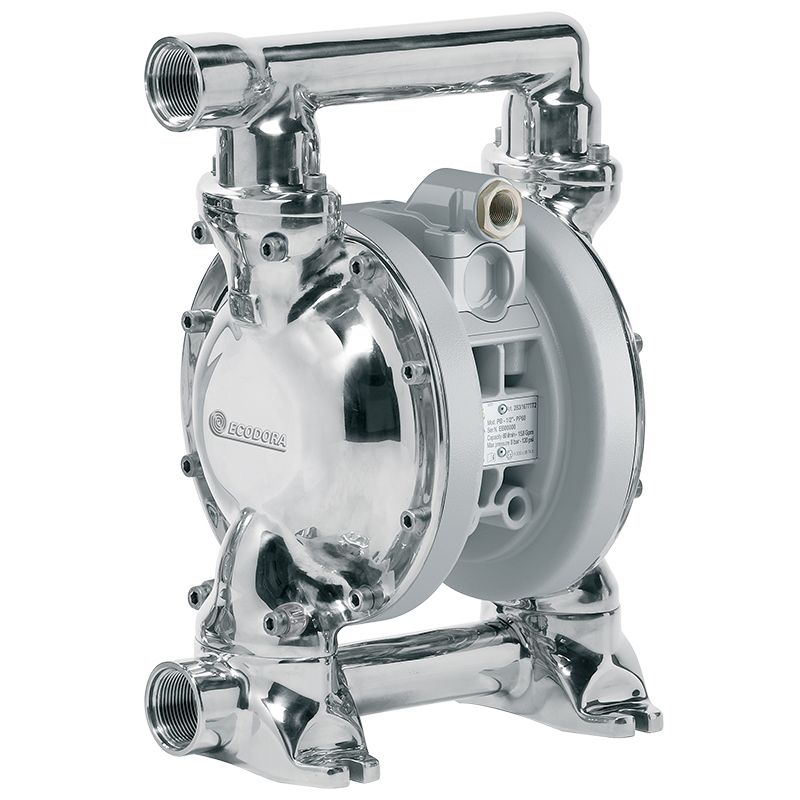

Diaphragm pump in polypropylene and AISI 316 stainless steel series PPIB-1, membranes in Teflon® and Hytrel®, balls in Teflon® and seats in AISI 316 stainless steel

Download

Product sheet

File PDF - 200 KB

Manual

File - 5.58Mb

Features

Ratio 1:1
Flow rate 130 l/min
Max pressure 8 bar
Max cicles per minute 270 cpm
Delivery per cicles 0,540 l
Max suction lift dry column 5 m - wet column 7,5 m
Max size pumpable solids 3 mm
Max working temperature 65 °C
Noise level 78 dB
Max air consumption 1,1 m³/min
Air working pressure 3÷8 bar
Air inlet connection G 3/8" (f)
Air outlet connection (muffler) G 3/4" (f)
Fluid inlet connection G 1.1/4" (f)
Fluid outlet connection G 1" (f)
Balls for inlet ball valve
Membranes Teflon®+Hytrel®
Balls Teflon®
Seats AISI 316 stainless steel
Packing No. 1 - 0,030 m³
Gross weight 24 kg

OVERALL DIMENSIONS (mm)

0E2A1/26775TTI
