Diaphragm pump
Aluminum diaphragm pump
0E33/2011TTPT2

Do you want more information?

Back to the list

Previous one Next

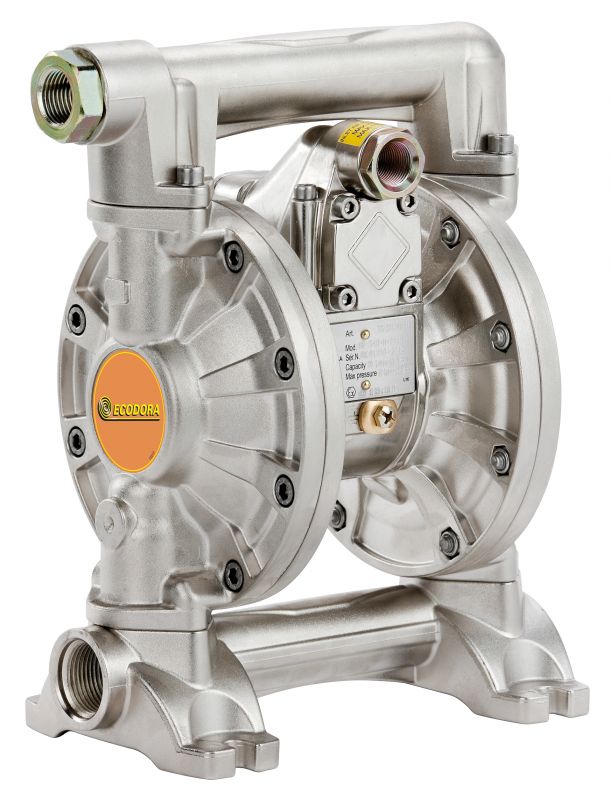

p/n 0E33/2011TTPT2

Diaphragm pump in aluminum series AB-34 with membranes and balls in Teflon^® and seats in polypropylene

Download

Product sheet

File PDF - 200 KB

Features

Ratio	1:1
Flow rate	55 l/min
Compatible fluids	water, mineral-vegetable oils, diesel fuel
Pump material	aluminum
Ball valve material	Teflon^®
Air inlet connection	G 3/8" (f)
Fluid inlet-outlet connection	G 3/4" (f) x G 3/4" (f)
Air working pressure	2÷6 bar
Max supply pressure	8 bar
Average air consumption	500 l/min
Noise level	75 dB
Fluid temperature	-10÷+90 °C
Max solids diameter	ø 1,5 mm
Suitable for drums or tank	modular
Suction-delivery ball valve with spring	ball valve with spring
Packing	No. 1 - 0,015 m³
Weight	8 kg

Sectors of use

Agriculture

Automotive

Building and road construction

Industry

Mining

Lube trucks and transports
