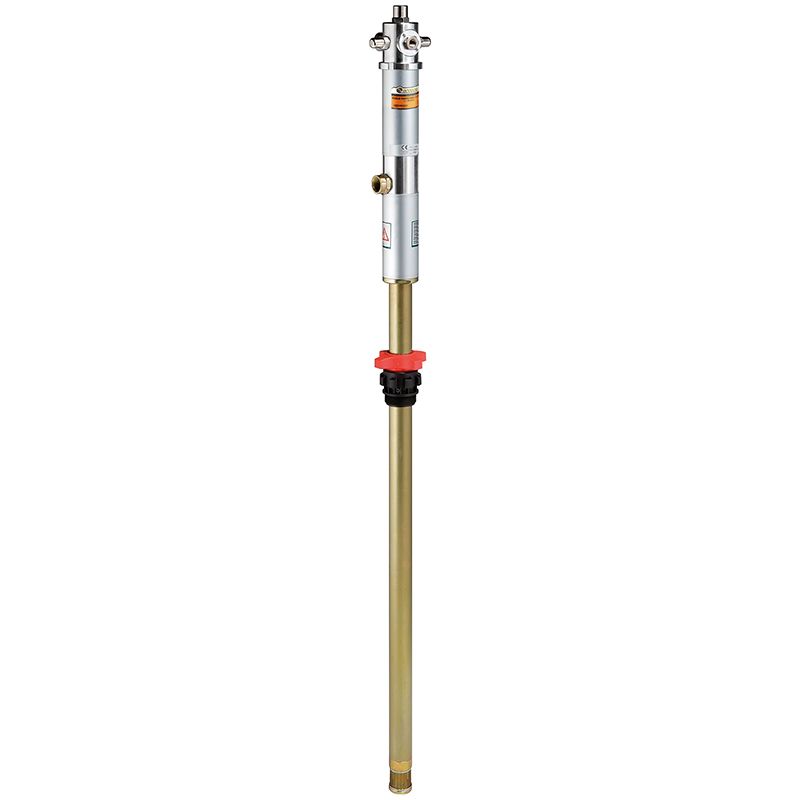

Pneumatic piston pump s. 650, R 1:1 - 40 l/min, with Viton® seals and suction tube 940 mm. Suitable for 180÷220 kg drums
| Ratio | 1:1 |
| Flow rate | 40 l/min |
| Compatible fluids | oils, lubricants and similar |
| Suction tube upper body | aluminum |
| Suction tube | carbon steel |
| Air inlet connection | G 1/4" (f) |
| Fluid outlet connection | G 3/4" (f) |
| Air working pressure | 6÷8 bar |
| Average air consumption | 370 l/min |
| Noise level | 81 dB |
| Max deliverable oil viscosity | 130 SAE |
| Bung adaptor | - |
| Suitable for drums or tanks | suitable for drums 180÷220 kg |
| Packing | No. 1 - 0,020 m³ |
| Weight | 7,3 kg |
