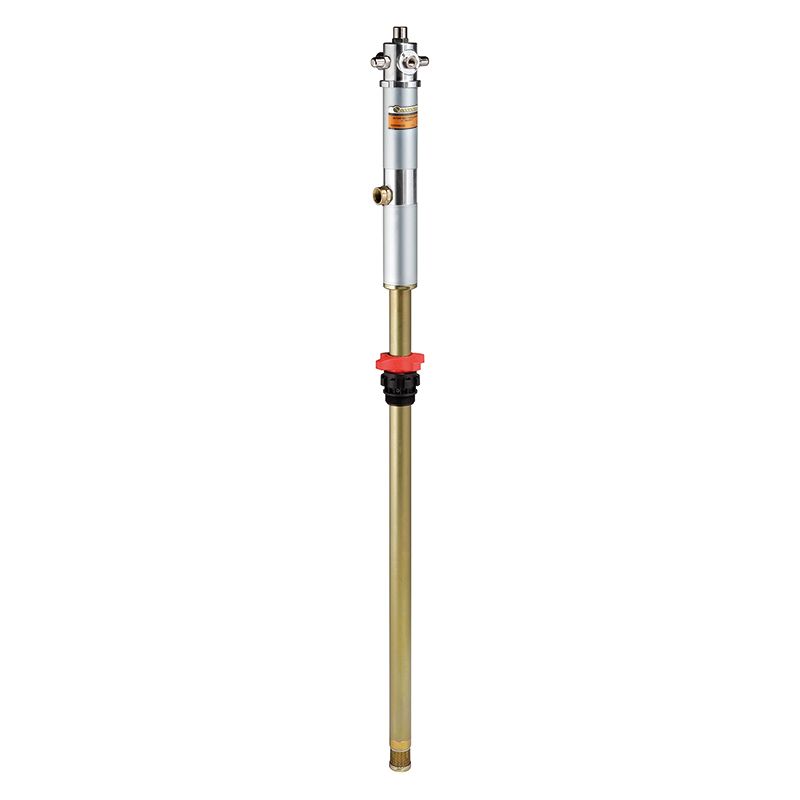

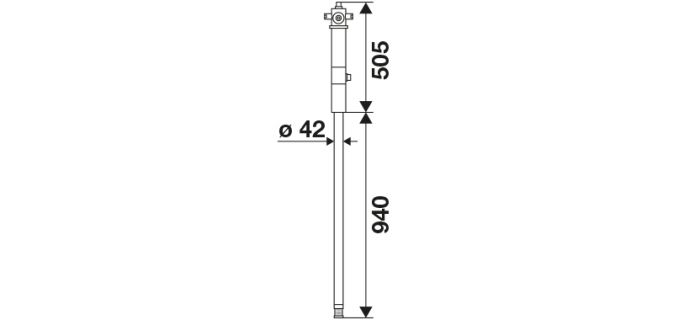

Pneumatic piston pump s. 650 for transferring oil and similar, R 1:1 - 40 l/min with Teflon® seals and suction tube 940 mm with bung adaptor for 180÷220 kg drums
Ratio | 1:1 |
Flow rate | 40 l/min |
Compatible fluids | oils, lubricants and similar |
Suction tube upper body | aluminum |
Suction tube | carbon steel |
Air inlet connection | G 1/4" (f) |
Fluid outlet connection | G 3/4" (f) |
Air working pressure | 6÷8 bar |
Average air consumption | 370 l/min |
Noise level | 81 dB |
Max deliverable oil viscosity | SAE 130 |
Bung adaptor | standard |
Suitable for drums or tanks | suitable for drums 180÷220 kg |
Packing | No. 1 - 0,020 m³ |
Weight | 7,4 kg |
