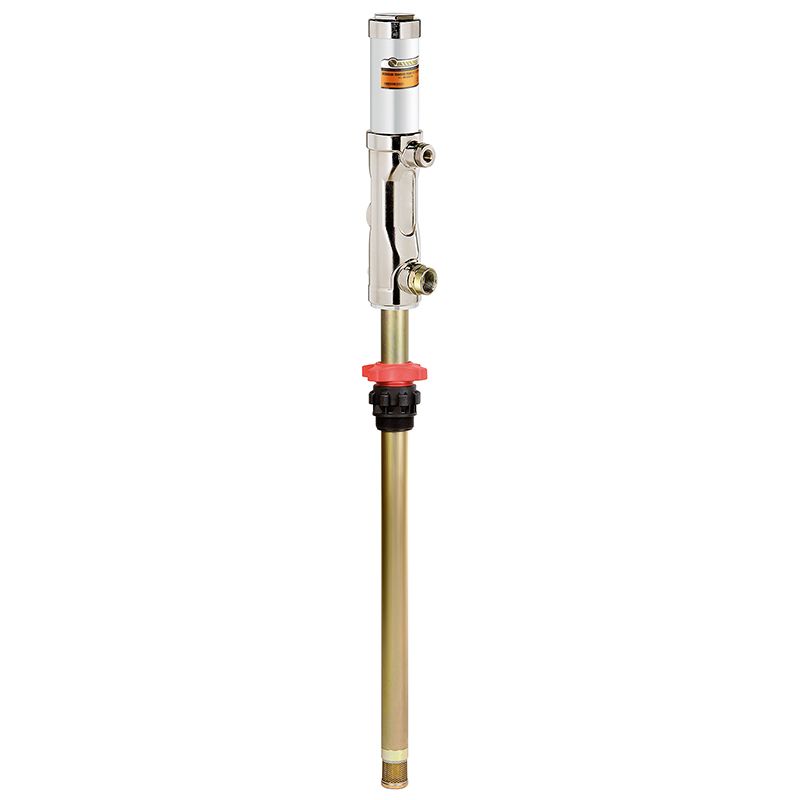

Pneumatic piston pump s. 500, R 3:1 - 20 l/min, with Viton® seals and suction tube 740 mm. Suitable for 50÷60 kg drums
| Ratio | 3:1 |
| Flow rate | 20 l/min |
| Compatible fluids | oils, lubricants and similar |
| Suction tube upper body | aluminum |
| Suction tube | carbon steel |
| Air inlet connection | G 1/4" (f) |
| Fluid outlet connection | G 1/2" (f) |
| Air working pressure | 4÷8 bar |
| Average air consumption | 350 l/min |
| Noise level | 81 dB |
| Max deliverable oil viscosity | 130 SAE |
| Bung adaptor | - |
| Suitable for drums or tanks | suitable for drums 50÷60 kg |
| Packing | No. 1 - 0,010 m³ |
| Weight | 5,8 kg |
