74320/60

p/n 74320/60

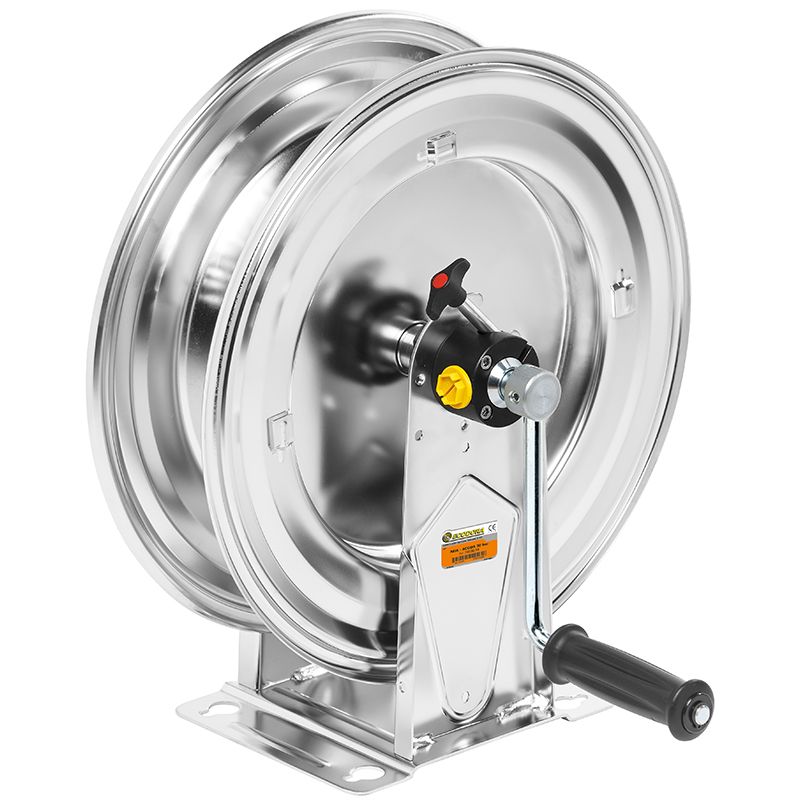

AISI 304 stainless steel manual hose reel s. 430, for diesel, 10 bar, without hose. Inlet G 1/2" (f), outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 362.08Kb

Manual

File - 4.29Mb

Features

Pressure 10 bar
Compatible fluids diesel fuel
Swivel joint brass
Seals Viton®
Characteristic manual
Material AISI 304 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path brass - AISI 304 stainless steel

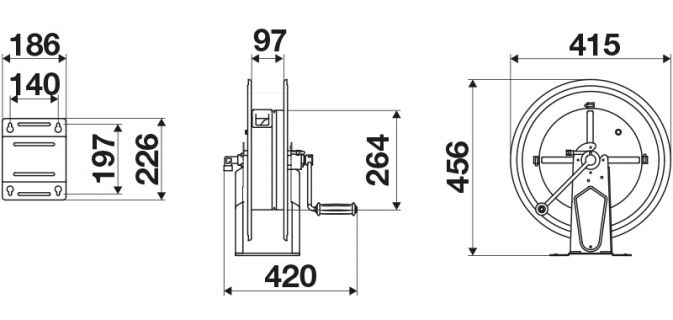

OVERALL DIMENSIONS (mm)

74320/60

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
50 m 35 m 25 m 17 m 15 m 8 m
