75300/50

p/n 75300/50

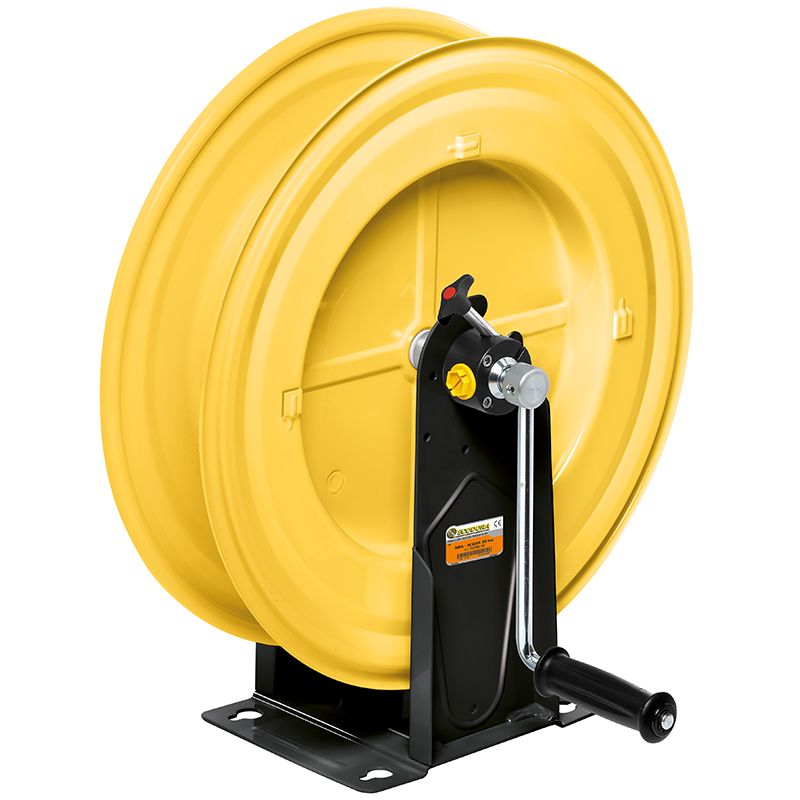

Manual hose reel s. 530, for grease, 600 bar, without hose. Inlet G 3/8" (f), outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 373.99Kb

Manual

File - 4.29Mb

Features

Pressure 600 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic manual
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 3/8" (f)
Outlet G 1/2" (f)
Reel flow path zinc plated steel

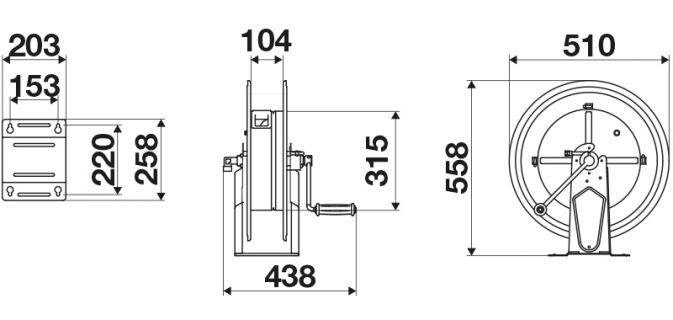

OVERALL DIMENSIONS (mm)

75300/50

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
90 m 65 m 35 m 25 m 20 m
Request information
