530E12/10

p/n 530E12/10

Hose reel with electric motorization 12 V DC in painted steel, s. 530 for air and water, 20 bar, without hose. Inlet-outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic electric 12 V DC
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path brass - zinc plated steel

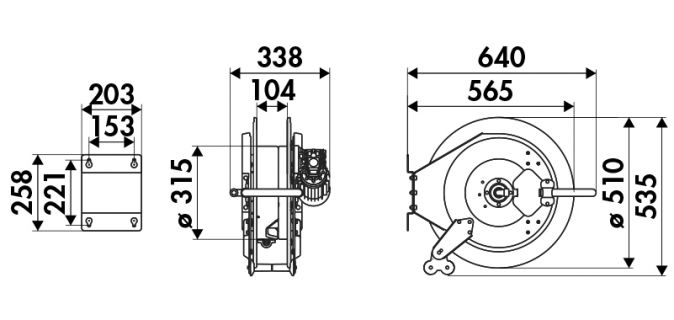

OVERALL DIMENSIONS (mm)

530E12/10

Sectors of use

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
50 m 35 m 25 m
Request information
