540E12/25

p/n 540E12/25

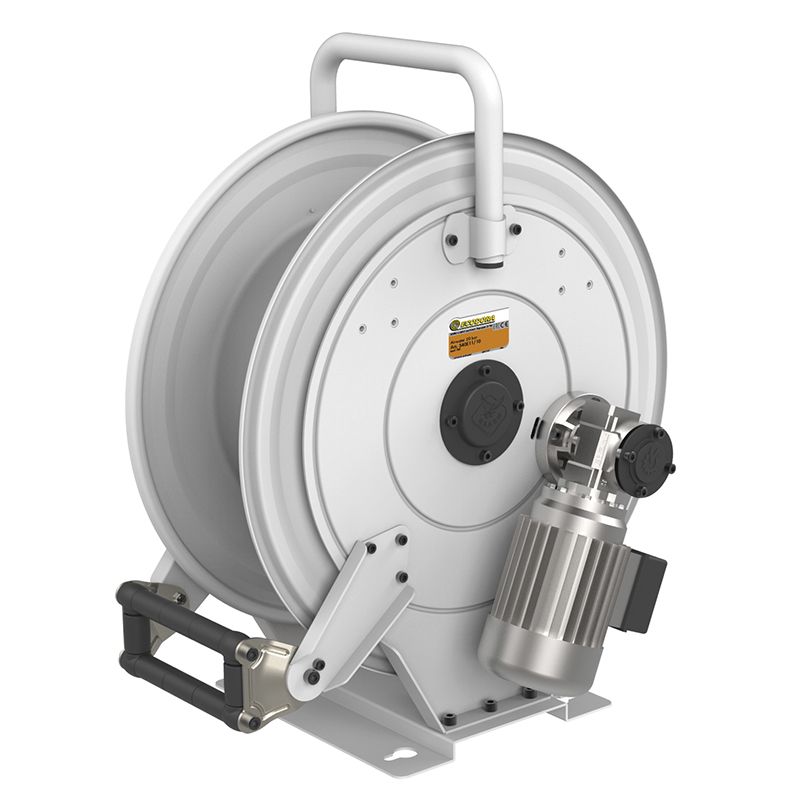

Fixed hose reel with electric motorisation 12 V DC in painted steel s. 540, for hot water, 150 bar, without hose. Inlet-outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Features

Pressure 150 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic electric 12 V DC
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel - zinc plated steel

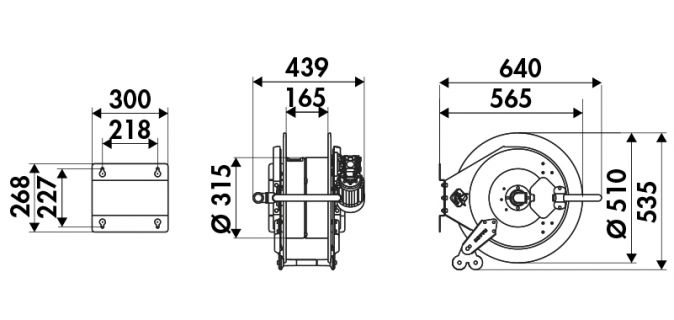

OVERALL DIMENSIONS (mm)

540E12/25

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
90 m 60 m 45 m
