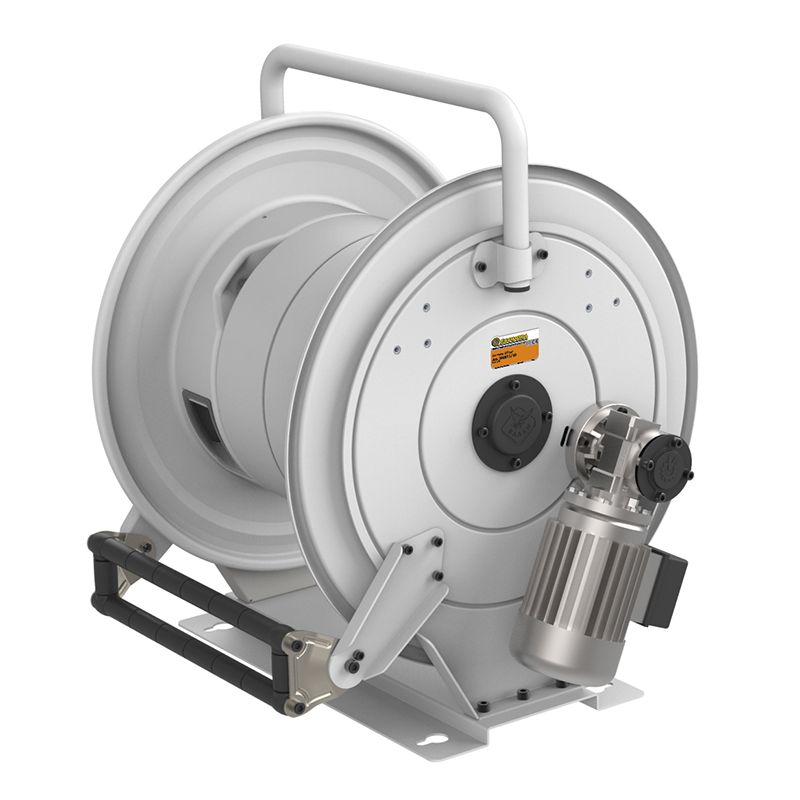

Hose reel with electric motorization 12 V DC in painted steel, s. 560 for hot water, 150 bar, without hose. Inlet-outlet G 1/2" (f)
Pressure | 150 bar |
Compatible fluids | water max 130 °C |
Swivel joint | AISI 304 stainless steel |
Seals | Viton® |
Characteristic | electric 12 V DC |
Material | painted steel |
Couplings | - |
Hose | - |
ø e hose length | - |
Inlet | G 1/2" (f) |
Outlet | G 1/2" (f) |
Reel flow path | AISI 304 stainless steel - zinc plated steel |
Capacity 8 x 12 | Capacity 10 x 14,5 | Capacity 13 x 19 | Capacity 16 x 27 | Capacity 1/4" | Capacity 5/16" | Capacity 3/8" | Capacity 1/2" | Capacity 5/8" | Capacity 3/4" | Capacity 1" | Capacity 1.1/4" | Capacity 1.1/2" | Capacity 2" |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
180 m | 120 m | 90 m |
