638/100

p/n 638/100

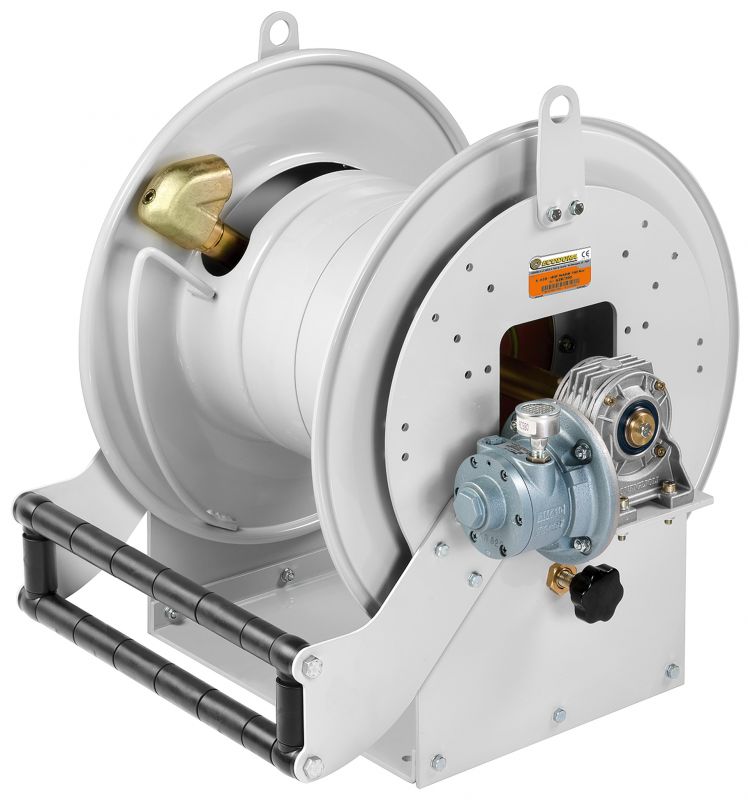

Hose reel with pneumatic motorisation s. 638 for air-water, 20 bar, without hose. Inlet-outlet G 1" (f)

Download

Product sheet

File PDF - 200 KB

Manual

File - 5.17Mb

Features

Pressure 10 - 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic pneumatic
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path brass - zinc plated steel

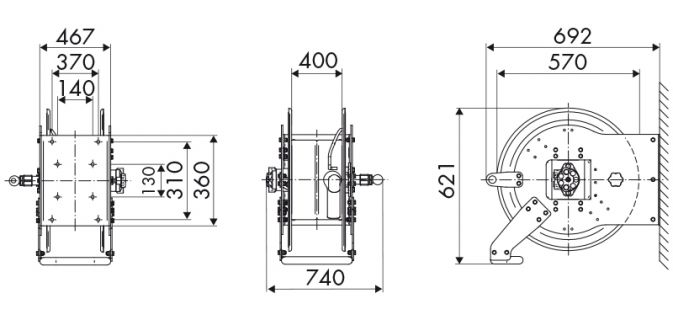

OVERALL DIMENSIONS (mm)

638/100

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
200 m 150 m 110 m 75 m 50 m
