638/500

p/n 638/500

Hose reel with pneumatic motorisation s. 638 for grease, 400 bar, without hose. Inlet-outlet G 1" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 391.97Kb

Manual

File - 5.17Mb

Features

Pressure 400 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic pneumatic
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path zinc plated steel

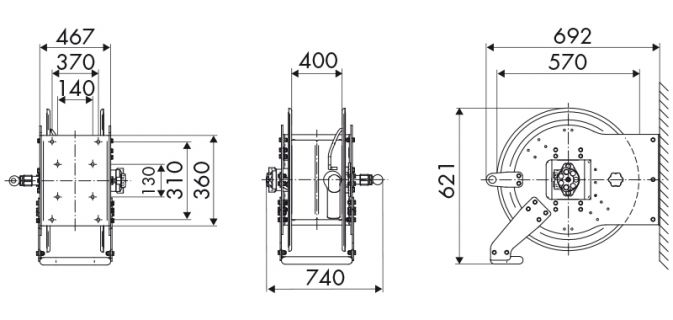

OVERALL DIMENSIONS (mm)

638/500

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
200 m 150 m 110 m 75 m 50 m
Request information
