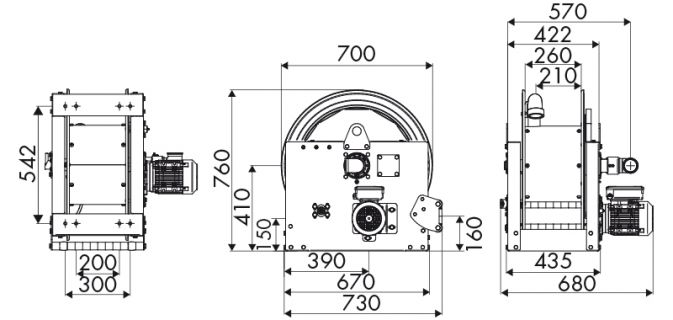

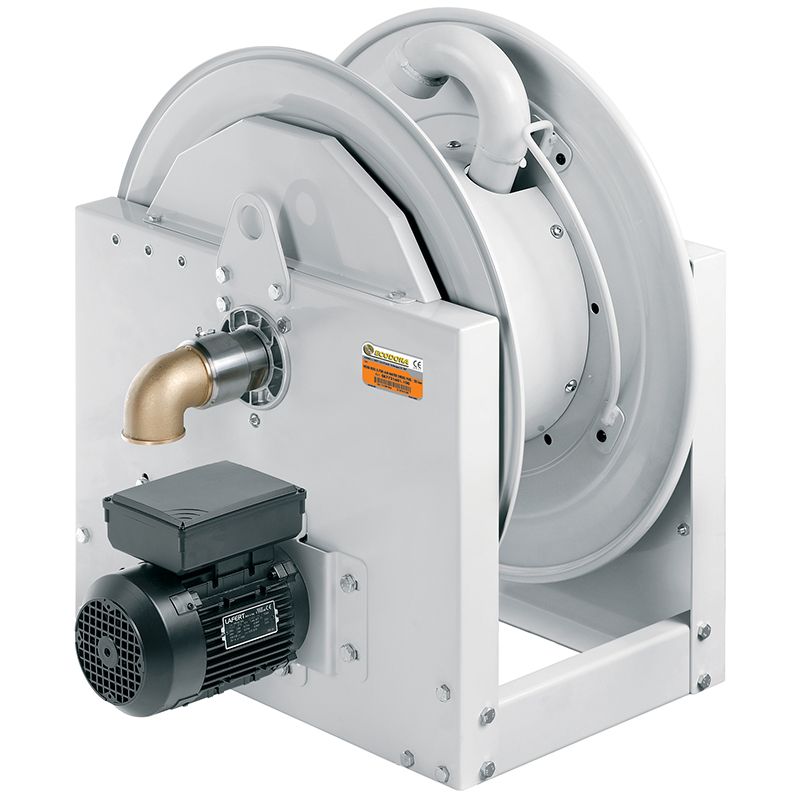

Hose reel with electric motorisation 230 V AC - 50/60 Hz ATEX in painted steel s. 700, for air-water and diesel, 20 bar, without hose. Drum width 270 mm. Inlet-outlet G 2" (f) with reel flow path in AISI 316 stainless steel
Pressure | 70 bar |
Compatible fluids | air - water |
Swivel joint | AISI 316 stainless steel |
Seals | Viton® |
Characteristic | electric 230 V AC - 50/60 Hz ATEX |
Material | painted steel |
Couplings | - |
Hose | - |
ø e hose length | - |
Inlet | G 2" (f) |
Outlet | G 2" (f) |
Reel flow path | AISI 316 stainless steel |
Capacity 8 x 12 | Capacity 10 x 14,5 | Capacity 13 x 19 | Capacity 16 x 27 | Capacity 1/4" | Capacity 5/16" | Capacity 3/8" | Capacity 1/2" | Capacity 5/8" | Capacity 3/4" | Capacity 1" | Capacity 1.1/4" | Capacity 1.1/2" | Capacity 2" |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
160 m | 110 m | 65 m | 30 m | 20 m | 15 m | 10 m |
