4436/21

p/n 4436/21

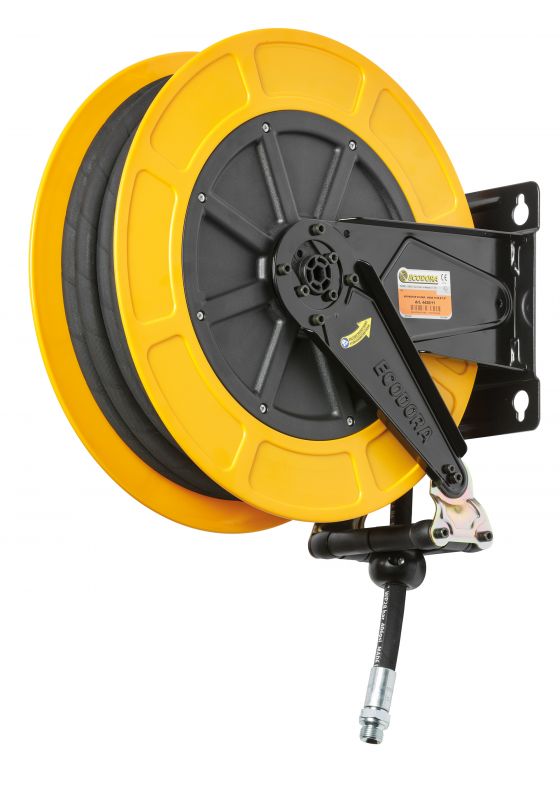

Fixed hose reel in ABS and brackets in painted steel s. 430, for AdBlue®, 10 bar, EPDM antistatic hose 8 m, ø 19 x 27. Flow path in AISI 304 stainless steel

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 344.33Kb

Manual

File - 13.54Mb

Features

Pressure 10 bar
Compatible fluids AdBlue®
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material shockproof ABS
Couplings AISI 304 stainless steel
Hose p/n 882/8
ø e hose length ø 3/4" - 8 m
Inlet G 3/4" (f)
Outlet G 3/4" (m)
Reel flow path AISI 304 stainless steel

Certifications

4436/21

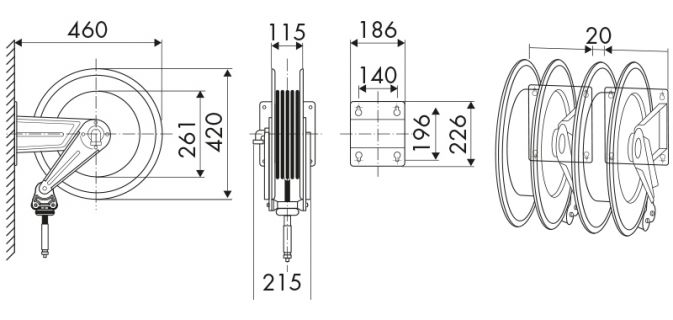

OVERALL DIMENSIONS (mm)

4436/21

This product is also available without hose
