533/12

p/n 533/12

AISI 304 stainless steel fixed hose reel s. 530, for air-water, 10 bar, with atoxic hygienic hose 25 m, ø 1/2"

Download

Product sheet

File PDF - 200 KB

Manual

File - 12.82Mb

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 964/25
ø e hose length ø 1/2" - 25 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path brass - AISI 304 stainless steel

Certifications

533/12

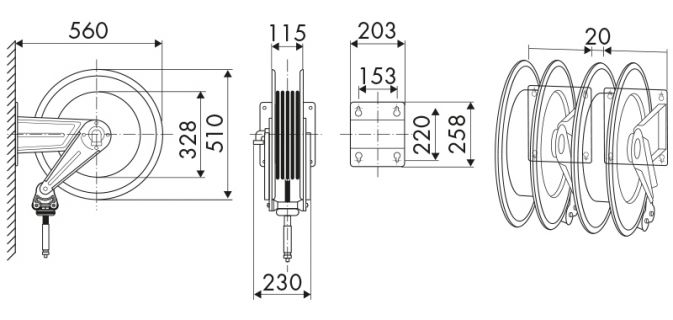

OVERALL DIMENSIONS (mm)

533/12

This product is also available without hose

Go to the sheet
