542/51

p/n 542/51

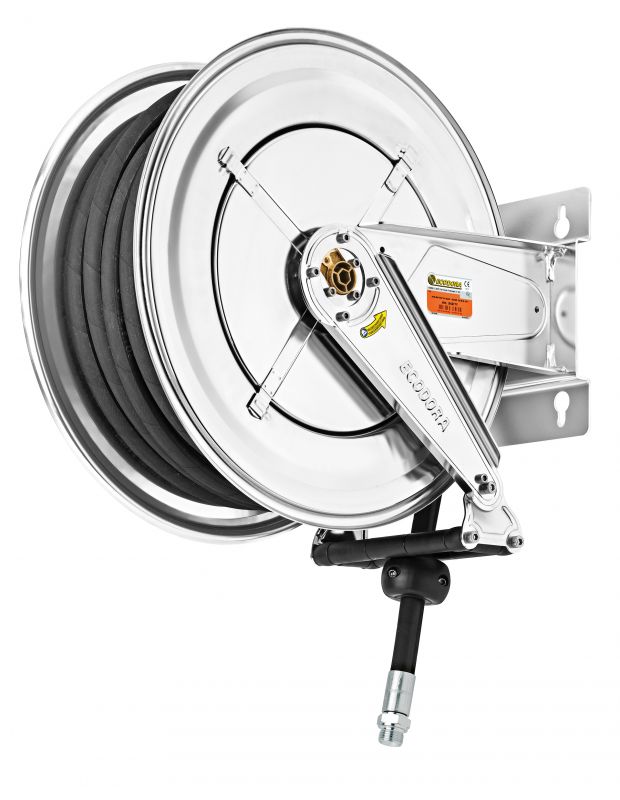

AISI 304 stainless steel fixed hose reel s. 540, for grease, 400 bar, with black rubber hose 30 m, ø 3/8"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 275.92Kb

Manual

File - 12.82Mb

Features

Pressure 400 bar
Compatible fluids grease
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 957/30
ø e hose length ø 3/8" - 30 m
Inlet G 3/8" (f)
Outlet G 1/4" (m)
Reel flow path zinc plated steel - AISI 304 stainless steel

Certifications

542/51

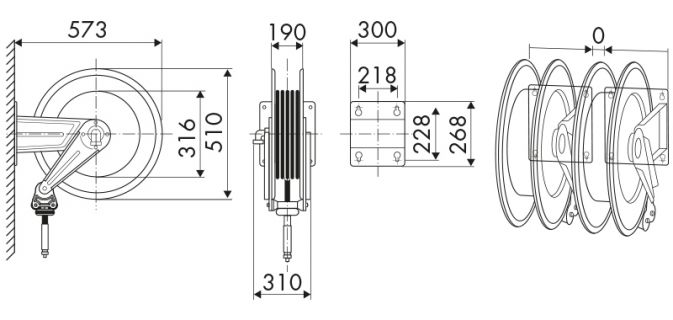

OVERALL DIMENSIONS (mm)

542/51

This product is also available without hose

Go to the sheet
