563/25

p/n 563/25

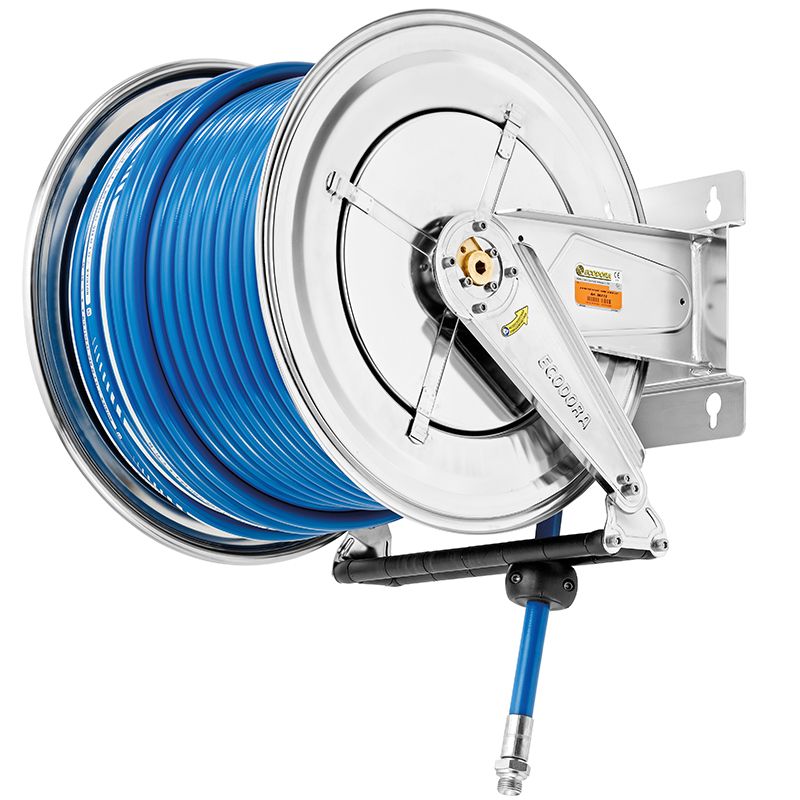

AISI 304 stainless steel fixed hose reel s. 560, for air-water, 50 bar, with atoxic hygienic hose 30 m, ø 1"

Download

Product sheet

File PDF - 200 KB

Manual

File - 12.82Mb

Features

Pressure 50 bar
Compatible fluids air - water
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings zinc plated steel
Hose p/n 984/30
ø e hose length ø 1" - 30 m
Inlet G 1" (f)
Outlet G 1" (m)
Reel flow path AISI 304 stainless steel

Certifications

563/25

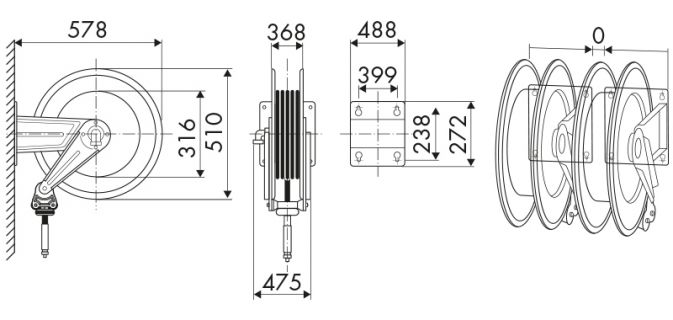

OVERALL DIMENSIONS (mm)

563/25

This product is also available without hose
