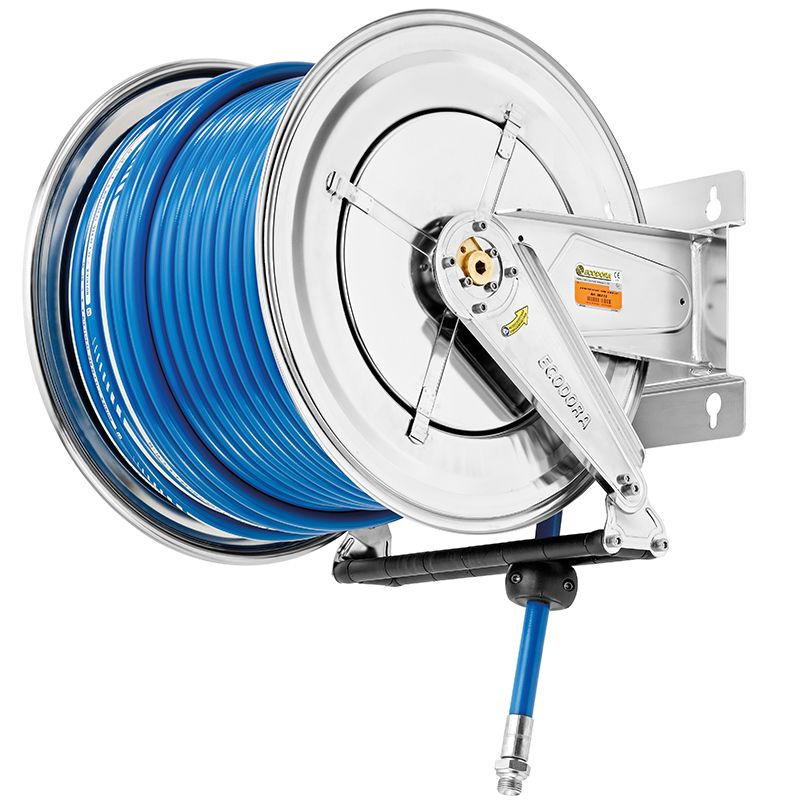

AISI 304 stainless steel fixed hose reel s. 560, for hot water, 50 bar, with hygienic hose 30 m, ø 1"
| Pressure | 50 bar |
| Compatible fluids | water max 80 °C |
| Swivel joint | AISI 304 stainless steel |
| Seals | Viton® |
| Characteristic | fixed |
| Material | AISI 304 stainless steel |
| Couplings | zinc plated steel |
| Hose | p/n 884/30 |
| ø e hose length | ø 1" - 30 m |
| Inlet | G 1" (f) |
| Outlet | G 1" (m) |
| Reel flow path | AISI 304 stainless steel |
