535/20

p/n 535/20

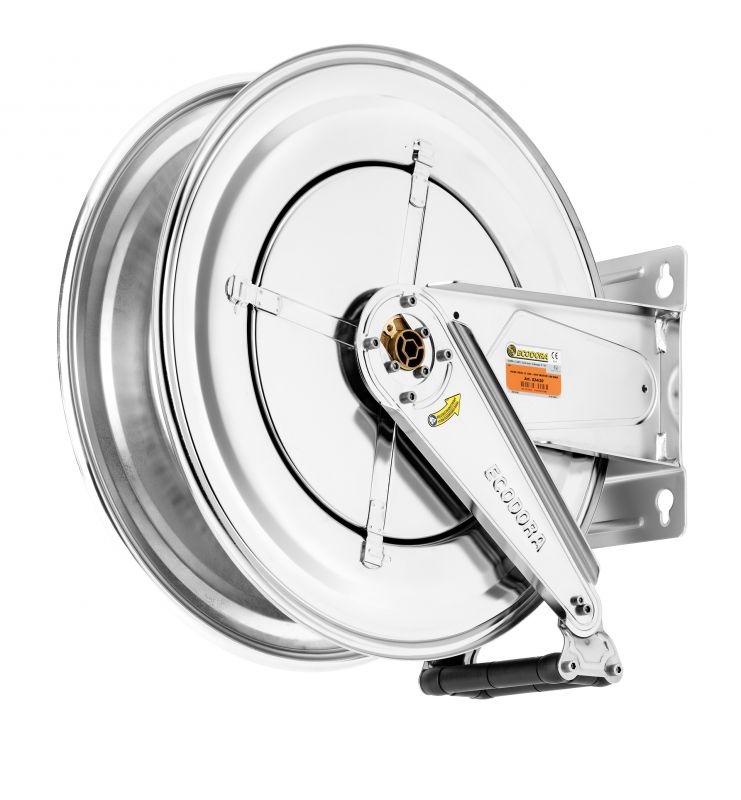

AISI 316 stainless steel fixed hose reel s. 530, for hot water, 100 bar, without hose. Inlet-outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 399.50Kb

Features

Pressure 100 bar
Compatible fluids water max 130 °C, oils and similar products, grease, diesel fuel, AdBlue®
Swivel joint AISI 316 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 316 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 316 stainless steel

Certifications

535/20

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
25 m 25 m 22 m
