545/30

p/n 545/30

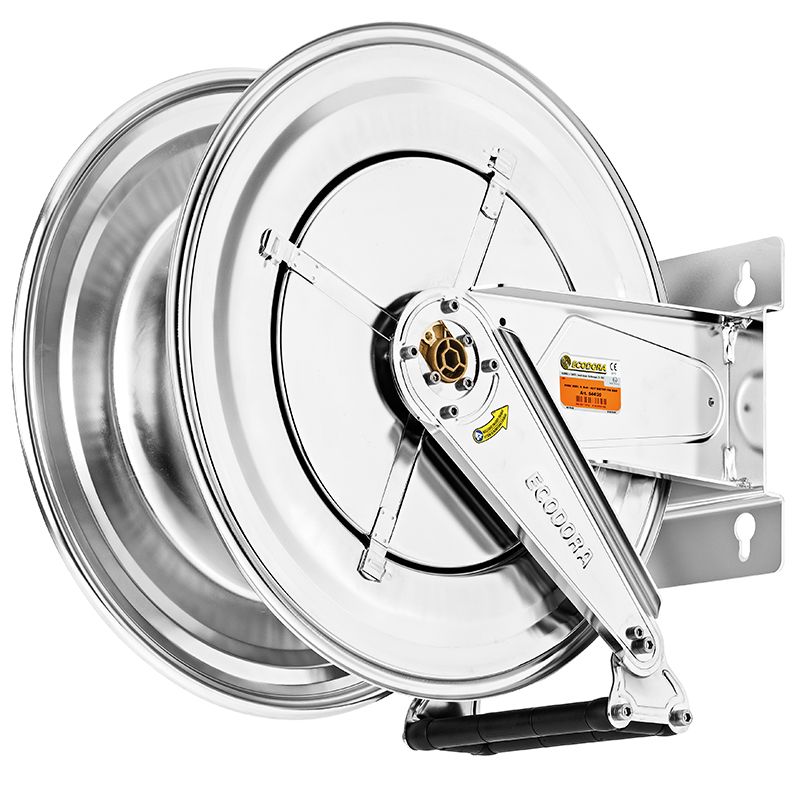

Fixed hose reel in AISI 316 stainless steel, s.540, for hot water, 200 bar, without hose. Inlet-outlet G 1/2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 354.61Kb

Features

Pressure 200 bar
Compatible fluids air - water
Swivel joint AISI 316 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 316 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path AISI 316 stainless steel

Certifications

545/30

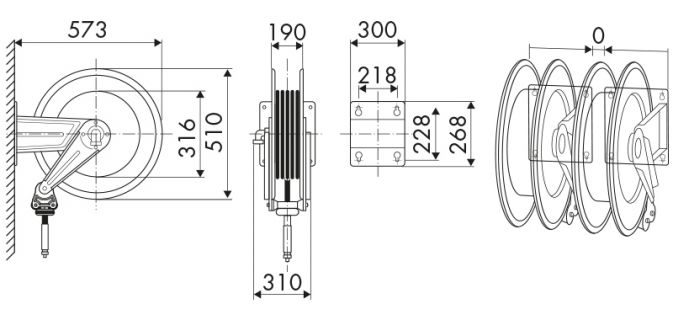

OVERALL DIMENSIONS (mm)

545/30

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
20 m 22 m 15 m
