530/400

p/n 530/400

Fixed hose reel s. 530, for oil and similar, 150 bar, without hose. Arrangement for double inlet-outlet. Inlet G 3/8" (f), outlet G 3/8" (m)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 319.87Kb

Features

Pressure 150 bar
Compatible fluids oils and similar products - paints
Swivel joint 2 painted steel swivel joint
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 3/8" (m)
Reel flow path zinc plated steel

Certifications

530/400

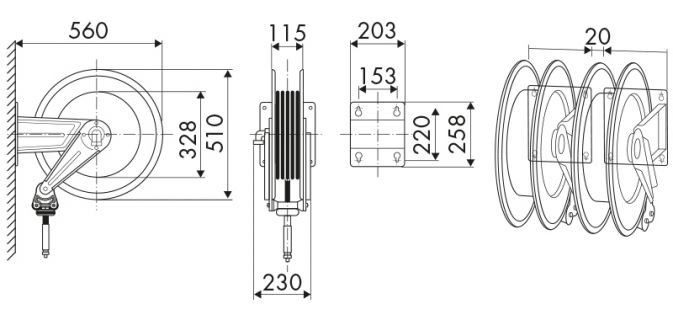

OVERALL DIMENSIONS (mm)

530/400

Sectors of use

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
22 m 20 m 15 m
