530/550

p/n 530/550

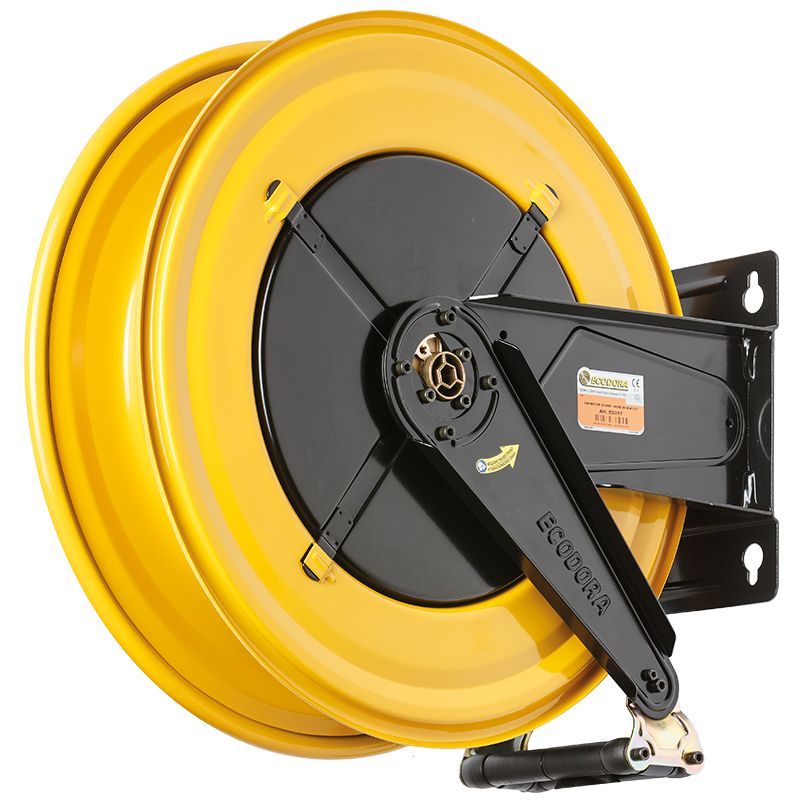

Fixed hose reel s. 530, for hot water, 700 bar, without hose. Stainless steel swivel joint

Download

Product sheet

File PDF - 200 KB

Features

Pressure 700 bar
Compatible fluids grease
Swivel joint AISI 304 stainless steel
Seals Teflon®
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 3/8" (f)
Outlet G 3/8" (f)
Reel flow path AISI 304 stainless steel

Certifications

530/550

OVERALL DIMENSIONS (mm)

530/550

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
25 m 25 m
