540/40/C1

p/n 540/40/C1

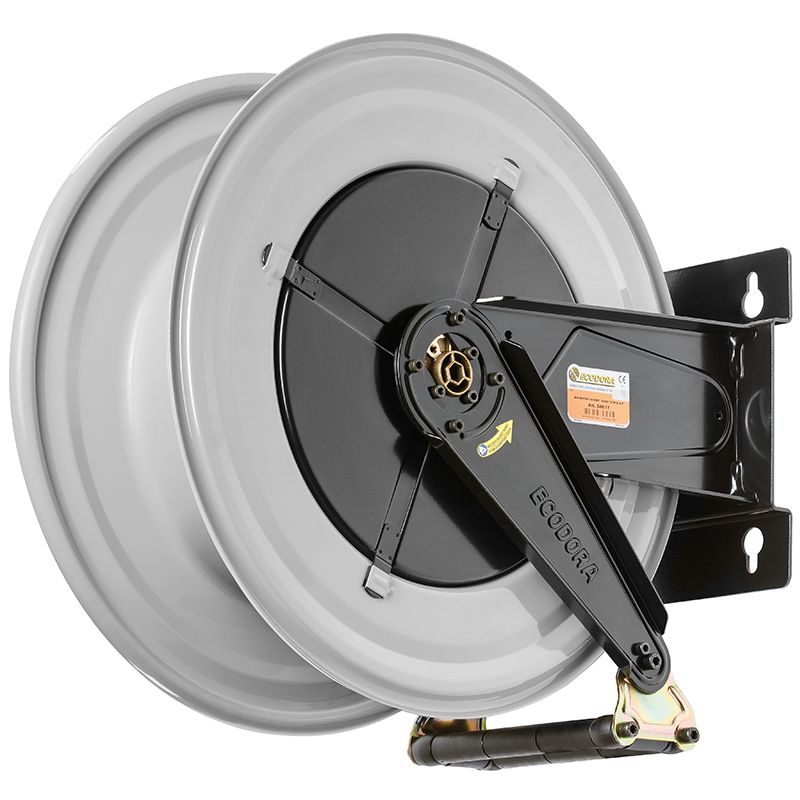

Fixed hose reel s. 540, for oil and similar, 150 bar, without hose. Inlet-outlet G 1" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 278.07Kb

Manual

File - 12.82Mb

Features

Pressure 150 bar
Compatible fluids oils and similar products
Swivel joint zinc plated steel
Seals polyurethane
Characteristic fixed
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path zinc plated steel

Certifications

540/40/C1

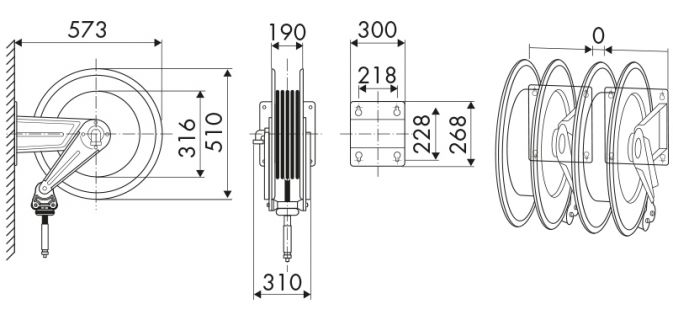

OVERALL DIMENSIONS (mm)

540/40/C1

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
22 m 15 m
