246542/10

p/n 246542/10

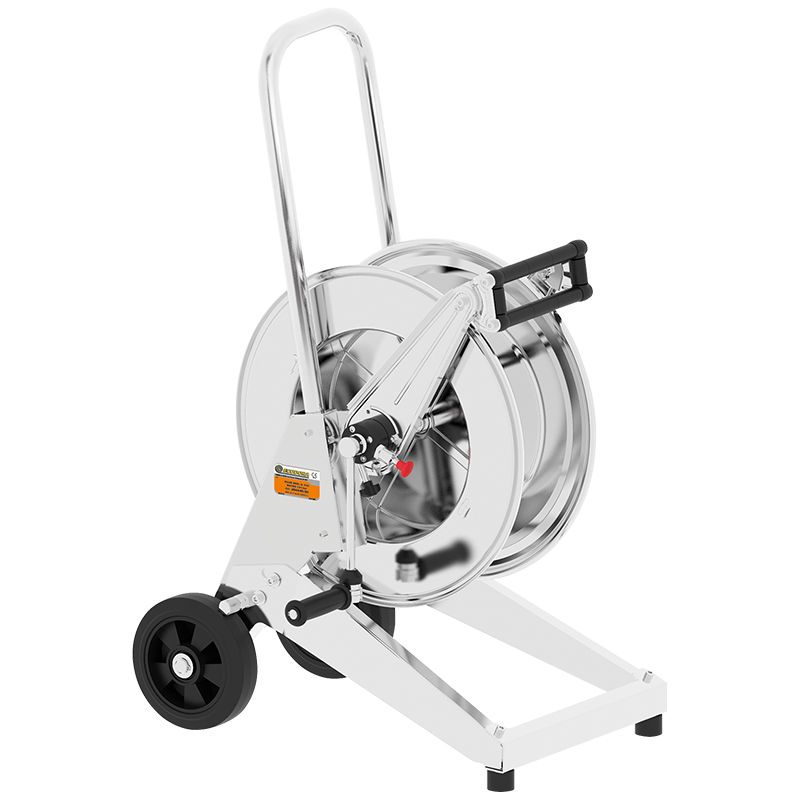

Manual trolley mounted hose reel in AISI 304 stainless steel, s. 540, for air-water, 20 bar, without hose. Inlet-outlet G 1" (f). Hose guide, safety system and rotation lock as standard

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 450.97Kb

Manual

File - 8.13Mb

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic trolley mounted
Material AISI 304 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1" (f)
Reel flow path brass - AISI 304 stainless steel

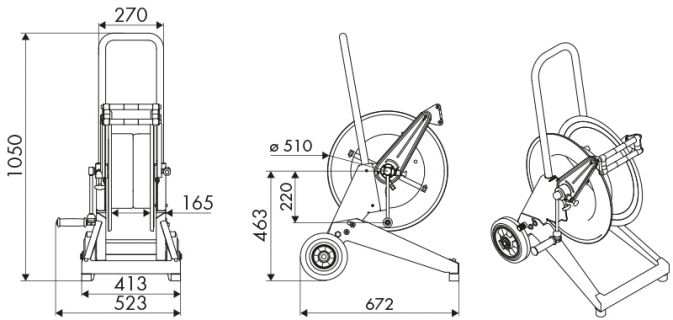

OVERALL DIMENSIONS (mm)

246542/10

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
150 m 110 m 65 m 45 m 35 m 25 m 15 m
