246564/25

p/n 246564/25

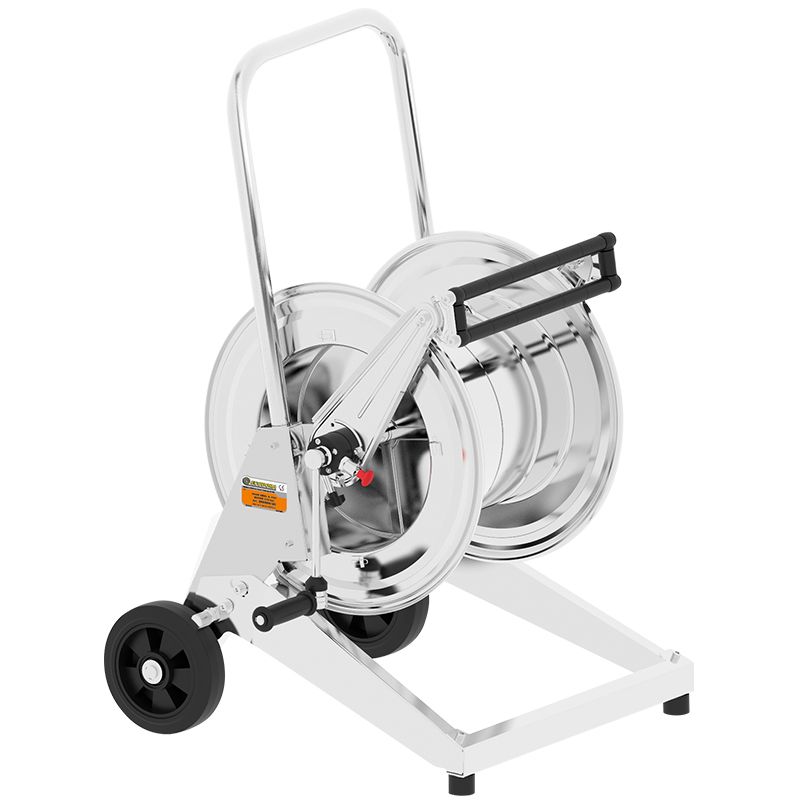

Manual trolley mounted hose reel in AISI 304 stainless steel, s. 560, for hot water, 100 bar, without hose. Inlet-outlet G 1/2" (f). Hose guide, safety system and rotation lock as standard

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 494.44Kb

Manual

File - 8.13Mb

Features

Pressure 100 bar
Compatible fluids water max 130 °C
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic trolley mounted
Material AISI 304 stainless steel
Couplings -
Hose -
ø e hose length -
Inlet G 1" (f)
Outlet G 1/2" (f)
Reel flow path AISI 304 stainless steel

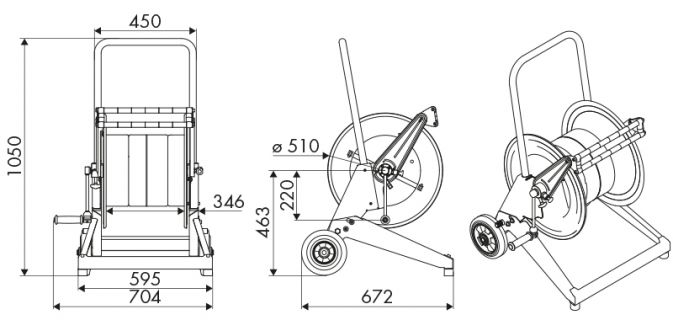

OVERALL DIMENSIONS (mm)

246564/25

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
320 m 240 m 140 m 100 m 90 m 60 m 30 m
