236530/10

p/n 236530/10

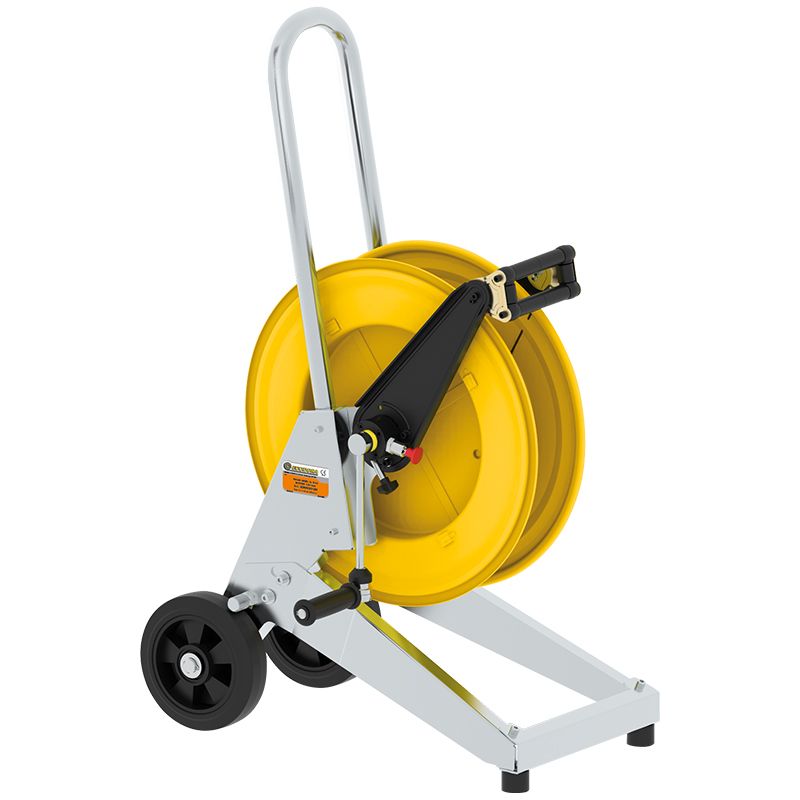

Manual trolley mounted hose reel s. 530, for air-water, 20 bar without hose. Inlet G 1/2" (f), outlet G 1/2" (f). Hose guide, safety system and rotation lock as standard

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 474.62Kb

Manual

File - 8.13Mb

Features

Pressure 20 bar
Compatible fluids air - water
Swivel joint brass
Seals Viton®
Characteristic trolley mounted
Material painted steel - zinc plated steel
Couplings -
Hose -
ø e hose length -
Inlet G 1/2" (f)
Outlet G 1/2" (f)
Reel flow path brass - zinc plated steel

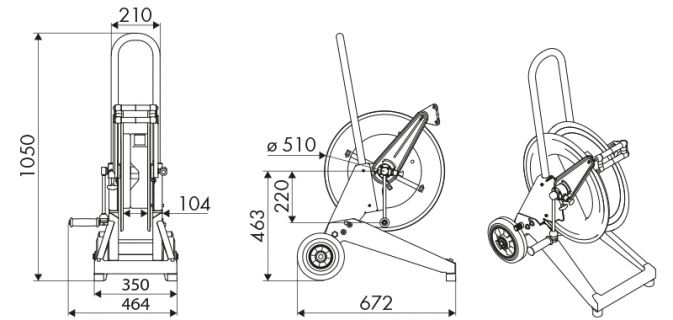

OVERALL DIMENSIONS (mm)

236530/10

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
90 m 65 m 35 m 25 m 20 m 15 m 7 m
