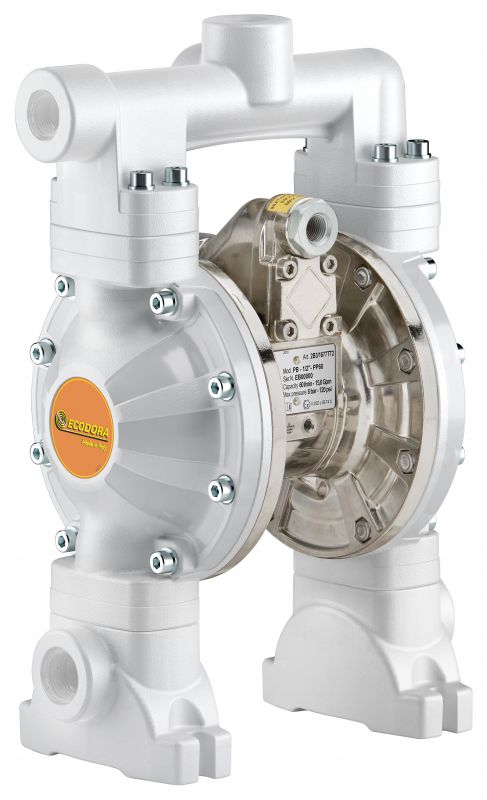

Diaphragm pump in aluminum and polypropylene series APPB-12 with dual inlet/multi ported outlet, membranes and balls in Hytrel®, seats in AISI 316 stainless steel and polypropylene and ball valves with spring
Ratio | 1:1 |
Flow rate | 55 l/min |
Compatible fluids | antifreeze and windshield washing liquid |
Motor and inside flanges material | aluminum |
Wetted parts | polypropylene |
Ball valve material | Teflon® |
Air inlet connection | G 3/8" (f) |
Fluid inlet-outlet connection | dual inlet/multi-ported outlet G 3/4" (f) x G 1/2" (f) |
Air working pressure | 2÷6 bar |
Max supply pressure | 8 bar |
Average air consumption | 400 l/min |
Noise level | 75 dB |
Fluid temperature | -10÷+65 °C |
Max solids diameter | ø 1,5 mm |
Suction-delivery ball valve with spring | cylindrical ball valve with spring |
Packing | No. 1 - 0,015 m³ |
Weight | 7 kg |
