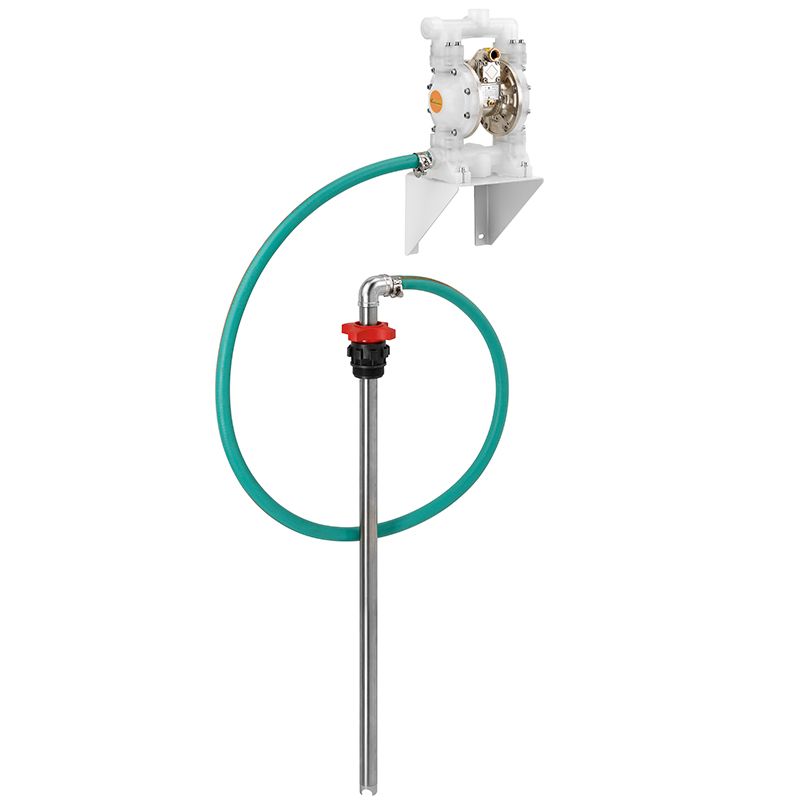

Wall mounted transfer kit with diaphragm pump series APPB-12 with multiple inlet/outlet in polypropylene and aluminum. R. 1:1 - 60 l/min, with membranes in Teflon®+Hytrel®, balls in Teflon®, seats in AISI 316 stainless steel and polypropylene and cylindrical ball valve with spring. Reinforcing rings on manifolds in AISI 316 stainless steel and AISI 304 stainless steel rigid suction tube for tanks
Ratio | 1:1 |
Flow rate | 70 l/min |
Pump | p/n 0E2B3/16117TT52 |
Flexible suction tube 2 m | - |
Suction tube | p/n 0E33425 |
Air inlet flow regulator | - |
Bung adaptor | p/n 0E33434 |
Wall bracket | p/n 0E33590 |
Packing | No. 2 - 0,034 m³ |
Weight | 12,5 kg |
