721301/10

p/n 721301/10

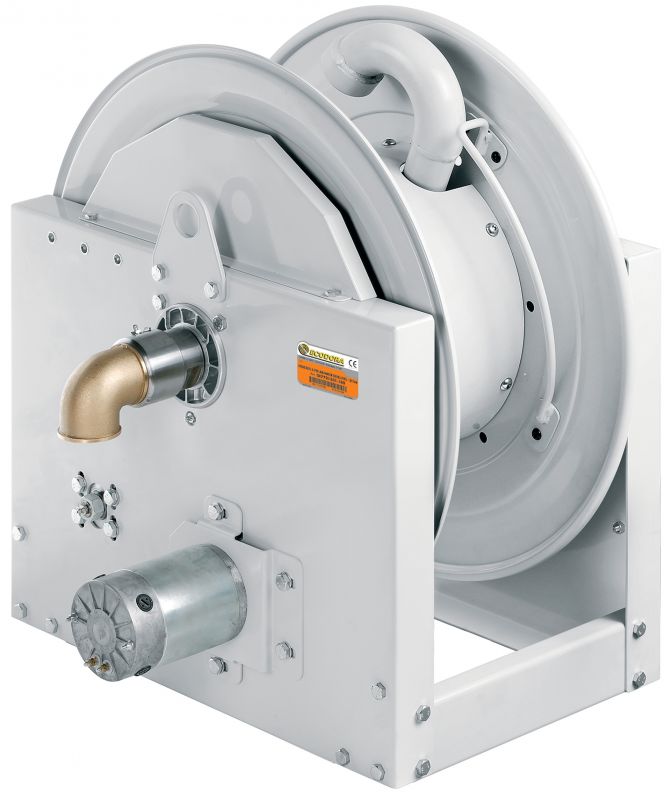

Hose reel with electric motorisation 24 V DC in painted steel s. 700, for water, oil, diesel and industrial fluids, 20 bar, without hose. Drum width 270 mm. Inlet-outlet G 2" (f)

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 665.18Kb

Manual

File - 32.51Mb

Features

Pressure 20 bar
Compatible fluids air - water - diesel fuel
Swivel joint aluminum
Seals Viton®
Characteristic electric 24 V DC
Material painted steel
Couplings -
Hose -
ø e hose length -
Inlet G 2" (f)
Outlet G 2" (f)
Reel flow path aluminum - zinc plated steel

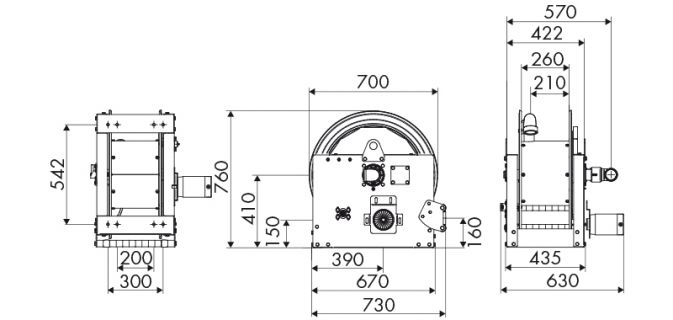

OVERALL DIMENSIONS (mm)

721301/10

Further features

Capacity 8 x 12 Capacity 10 x 14,5 Capacity 13 x 19 Capacity 16 x 27 Capacity 1/4" Capacity 5/16" Capacity 3/8" Capacity 1/2" Capacity 5/8" Capacity 3/4" Capacity 1" Capacity 1.1/4" Capacity 1.1/2" Capacity 2"
160 m 110 m 65 m 32 m 20 m 17 m 10 m
Request information
