434/12

p/n 434/12

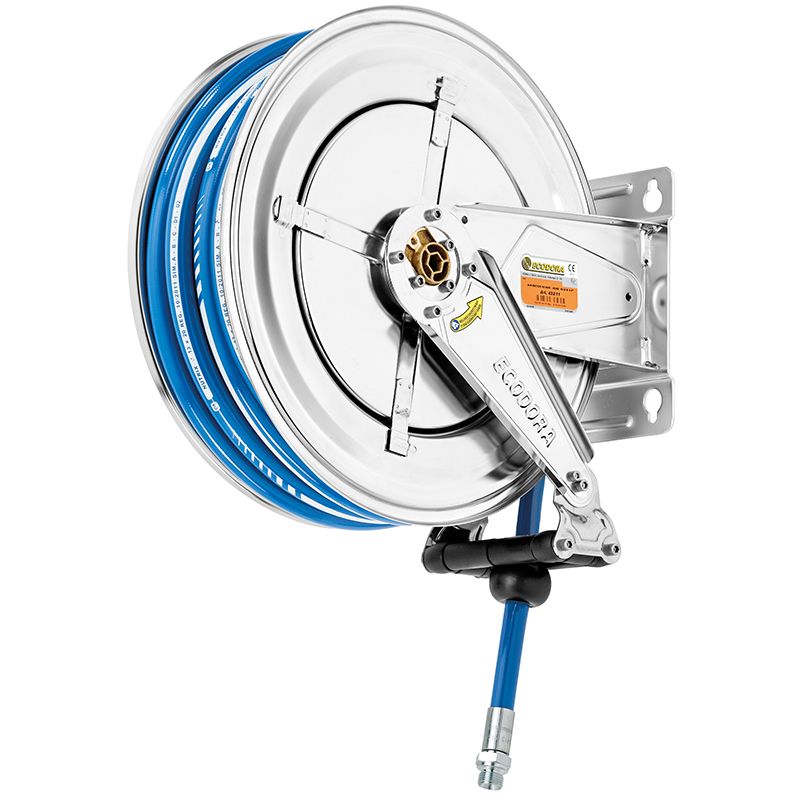

Fixed hose reel in AISI 304 stainless steel, s.430, for air-water, 10 bar, with hygienic hose 15 m, ø 1/2"

Download

Product sheet

File PDF - 200 KB

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings AISI 316 stainless steel
Hose p/n 861/15
ø e hose length ø 1/2" - 15 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

434/12

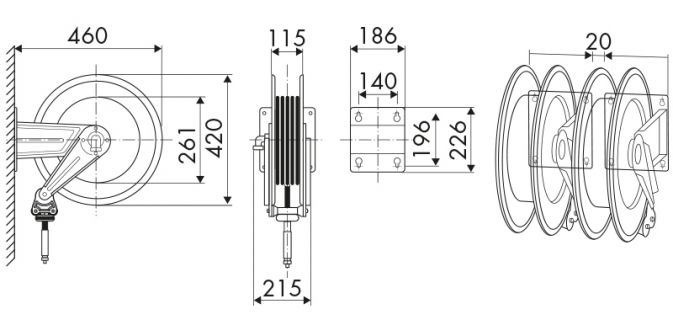

OVERALL DIMENSIONS (mm)

434/12

This product is also available without hose
