534/11

p/n 534/11

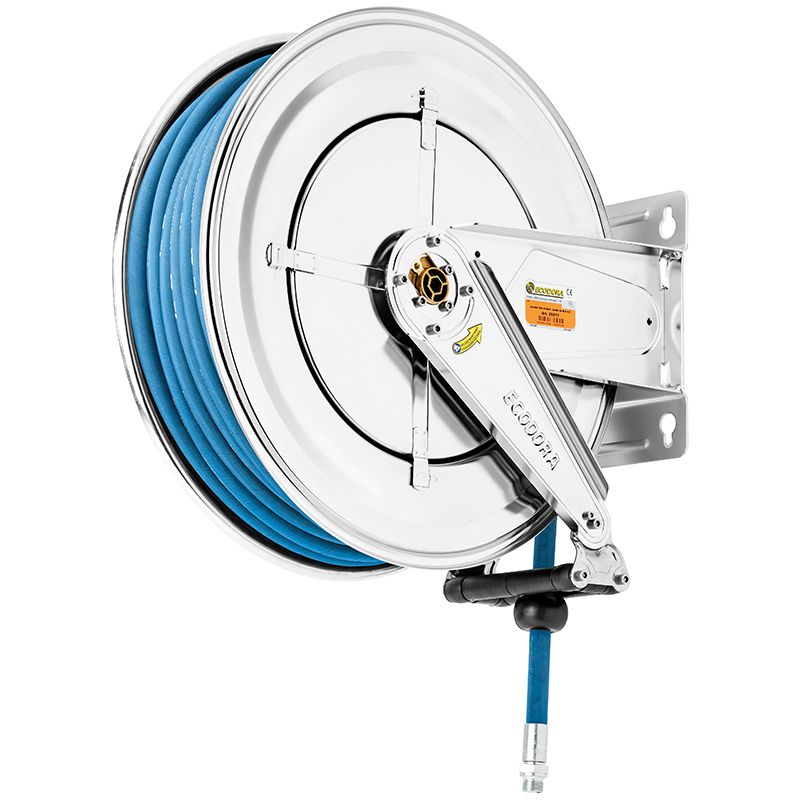

AISI 304 stainless steel fixed hose reel s. 530, for air-water, 10 bar, with atoxic hygienic hose 20 m, ø 1/2"

Download

Product sheet

File PDF - 200 KB

Spare Parts

File - 276.95Kb

Manual

File - 12.82Mb

Features

Pressure 10 bar
Compatible fluids air - water
Swivel joint AISI 304 stainless steel
Seals Viton®
Characteristic fixed
Material AISI 304 stainless steel
Couplings AISI 316 stainless steel
Hose p/n 861/20
ø e hose length ø 1/2" - 20 m
Inlet G 1/2" (f)
Outlet G 1/2" (m)
Reel flow path AISI 304 stainless steel

Certifications

534/11

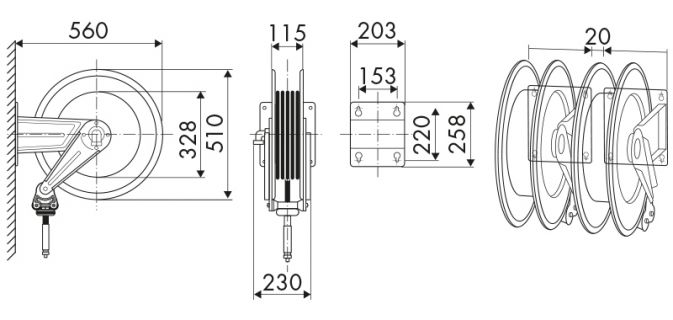

OVERALL DIMENSIONS (mm)

534/11

This product is also available without hose

Go to the sheet
