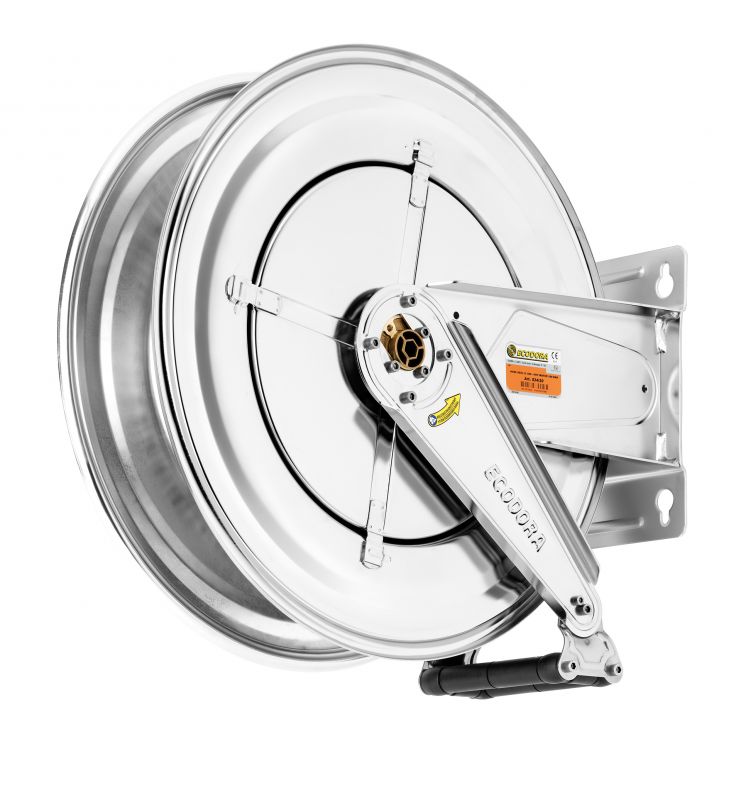

AISI 316 stainless steel fixed hose reel s. 530, for AdBlue®, 100 bar, without hose. Flow path in AISI 316 stainless steel. Inlet G 1" (f), outlet G 1" (f)
Pressure | 100 bar |
Compatible fluids | AdBlue® |
Swivel joint | AISI 316 stainless steel |
Seals | Viton® |
Characteristic | fixed |
Material | AISI 316 stainless steel |
Couplings | - |
Hose | - |
ø e hose length | - |
Inlet | G 1" (f) |
Outlet | G 1" (f) |
Reel flow path | AISI 316 stainless steel |
Capacity 8 x 12 | Capacity 10 x 14,5 | Capacity 13 x 19 | Capacity 16 x 27 | Capacity 1/4" | Capacity 5/16" | Capacity 3/8" | Capacity 1/2" | Capacity 5/8" | Capacity 3/4" | Capacity 1" | Capacity 1.1/4" | Capacity 1.1/2" | Capacity 2" |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22 m | 12 m | 8 m |
